HPSA-R For Nip / Rubber rollers and Cylindrical materials

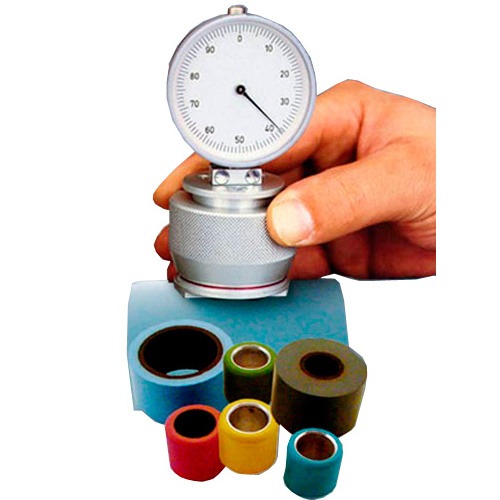

Made in GermanyThe HPSA-R# series shore A Durometers are designed to measure the hardness of rubber coated rollers and other cilindrical materials.
For cots, pressure rollers and many other rubber coated rollers, etc. The correct Shore A hardness of the cots is a critical factor to get the desired yarn structure and quality. As cots are abrasive, the hardness should be checked from time to time as they age.

3 Models:
HPSA-R20 - roller diameters up to 40mm
HPSA-R35 - roller diameters up to 70mm
HPSA-R55 - roller diameters up to 110mm




Features
  • Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators.
  • Supplied in a foam-fitted carrying case.
  • Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
  • Standard Memory Pointer to capture peak measurement.

Easy to operate




Measuring Suggestions

1. Whenever possible, a Durometer measurement should be taken at least 12 mm (approx. 0.500") in from the edge of a sample, as the hardness characteristic of any sample tends to change at the edges.
2. Whenever possible, the thickness of a sample should exceed 6 mm (approx. 0.250"). If the sample is thinner then this, then the sample can be backed with a sample of the same material to increase the thickness.
3. Test Coupons or test blocks (rubber or plastic) should not be used for calibration verification. As all samples are subject to characteristic changes over time along with temperature and lighting conditions, the rated Shore value when supplied as new can and will vary with age. Proper calibration verification requires independent confirmation of the internal spring forces along with the verification of the pin displacement vs. the indicated value on the scale.

Dimensions

Related Products

PTS-HP Durometer Test Stand


  • Mechanical lever-operated test stand for use when precise positioning is required on the test sample (i.e. o-ring, etc.).
  • Operation is as simple as rotating lever until shell on durometer reaches red line.

More details

PTS-HP Durometer Test Stand

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Complete Kit

The HP series durometer is supplied as a complete kit with:

  • Durometer
  • User Manual
  • Foam-fitted carrying case.

A calibration certificate is optional.



Specifications
Work Face Radius:HPSA-R20 - 20mm
;HPSA-R35 - 35mm
;HPSA-R55 - 55mm
Indenter:Cone 35°, 1,3 mm Ø
Typical applications:Hardness of elastomers and rubber etc.
Depth of indentation:0 - 2,5 mm
Test pressure:approx. 12,5 N
Measuring spring force:0,55 - 8,065 N
Display range:0 - 100 Scale
Scale diameter:56 mm
Working face:16 mm Ø = 2 cm²
Weight, net (gross):approx. 300 g (500 g)
Dimensions:50 x 50 x 110 mm (L x W x H)
Warranty:1 year

Buy Now
Products

Product
Price
Quantity
HPSA-R20-M Shore A Durometer for roller ø < 40 mm
€ 435,00
HPSA-R35-M Shore A Durometer for roller ø - 40 to 70 mm
€ 435,00
HPSA-R55-M Shore A Durometer for roller ø - 70 to 110 mm
€ 435,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request

Buy Now
Accessories

Product
Price
Quantity
PTS-HP - PTS Durometer Test Stand
€ 525,00
HP-NGC New Gauge Certificate
€ 89,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
