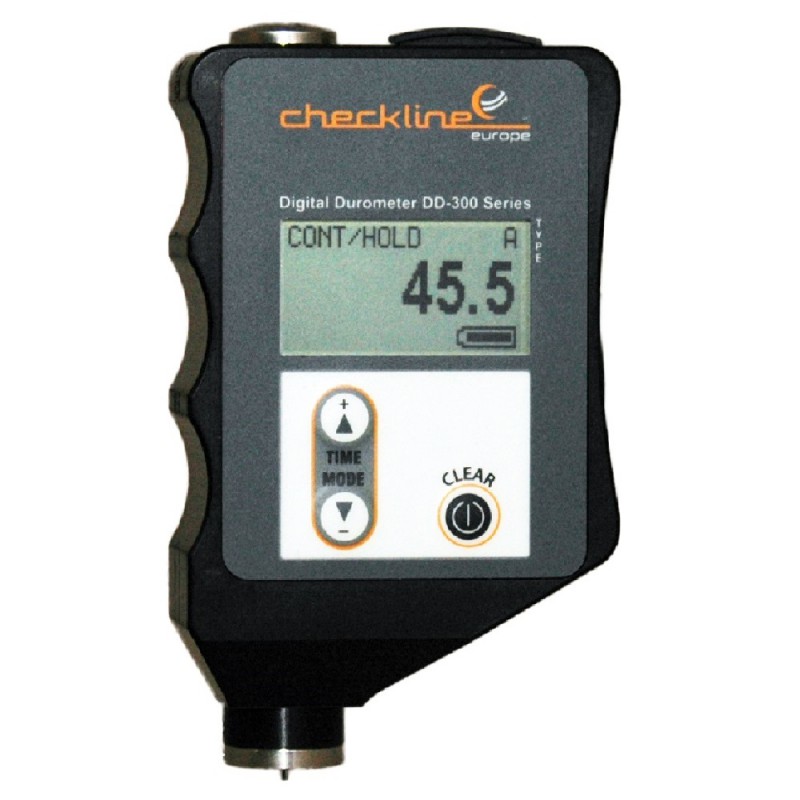

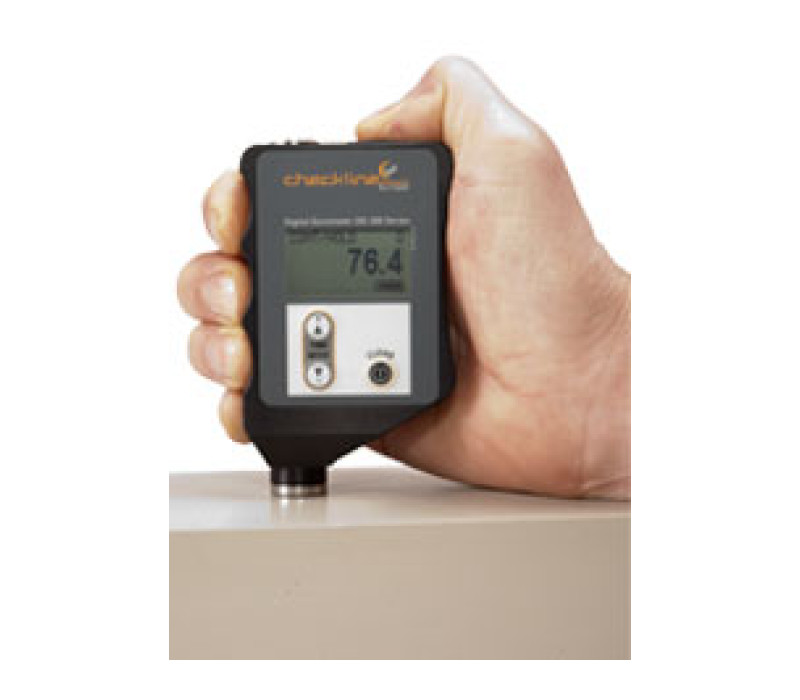

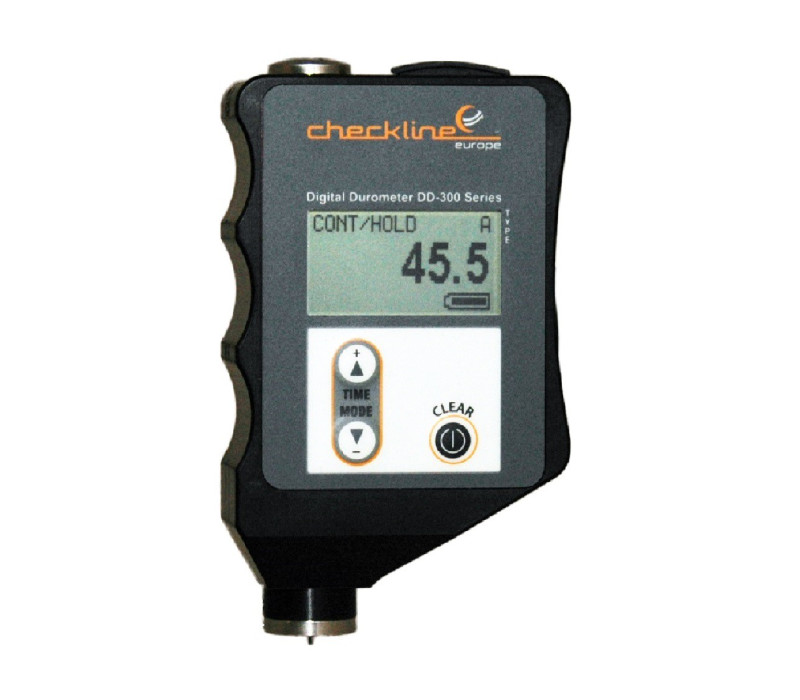

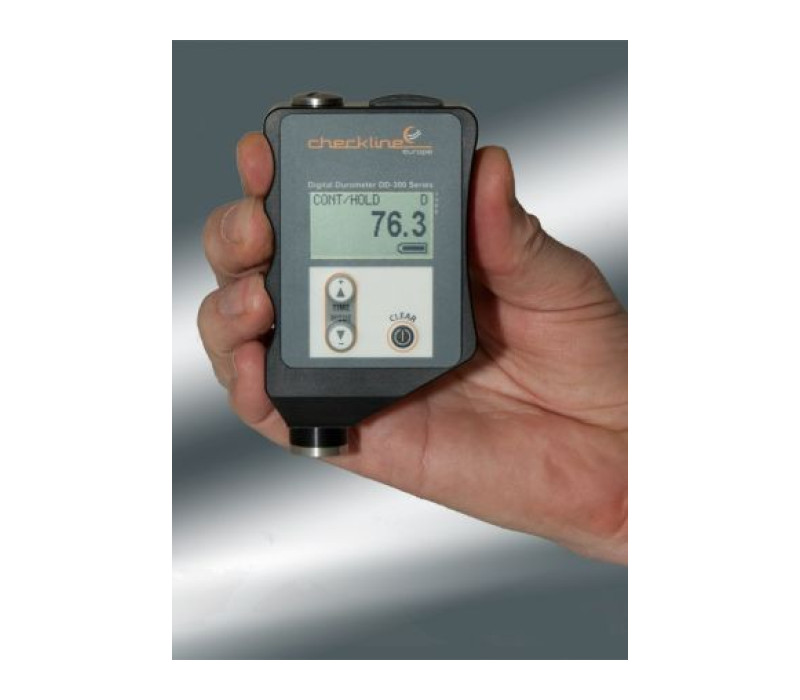

DD-300 Digital Precision Durometer


Made in GermanyOur new DD-300 Durometer range takes rubber / plastic hardness testing to the next level.

This DD-300 hardness tester has been designed to have almost no internal friction and therefore meets the highest quality standards.

The entire internal movement is guided by bearings and makes this one of the best digital durometers available today.

The DD-300 Durometer is available in Shore A, C, D, O, OO, AO, DO and Asker C.



Features
  • Highly accurate and repetitive
  • Measuring modes:
    - Continuous Mode
    - Peak Mode
    - Timer Mode
  • Timer function to take measurement after (0-15) seconds.
  • Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240
  • No internal friction due to precision engineered bearing system for internally moving parts.

360 degree photo

Related Products

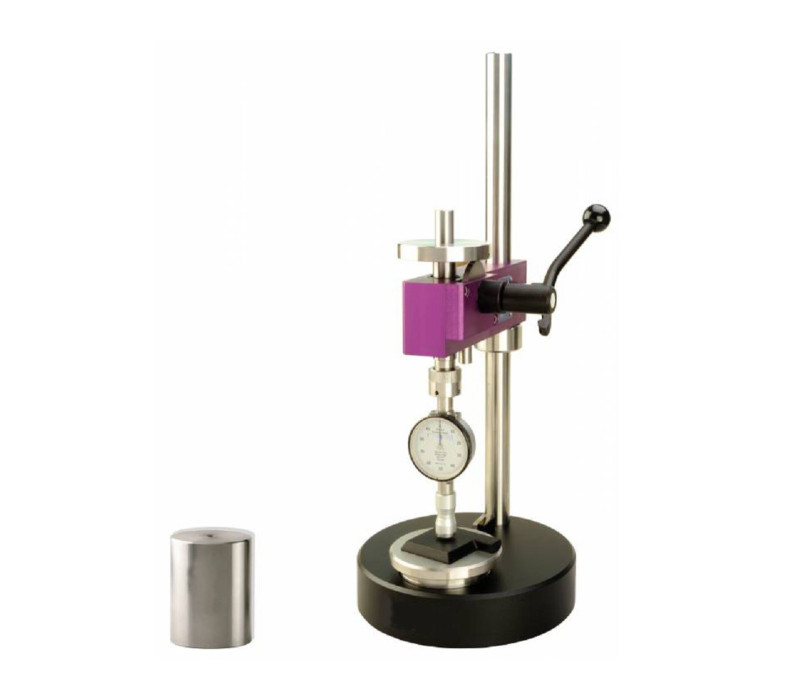

OS-300-2 Durometer test stand


  • Shock free lowering & integrated crash ring
  • Durometer weight shore D optional available
  • Meets the requirements of international norms: DIN 53505, ISO 868, ISO 7619, ASTM D 2240

More details

OS-300-2 Durometer test stand

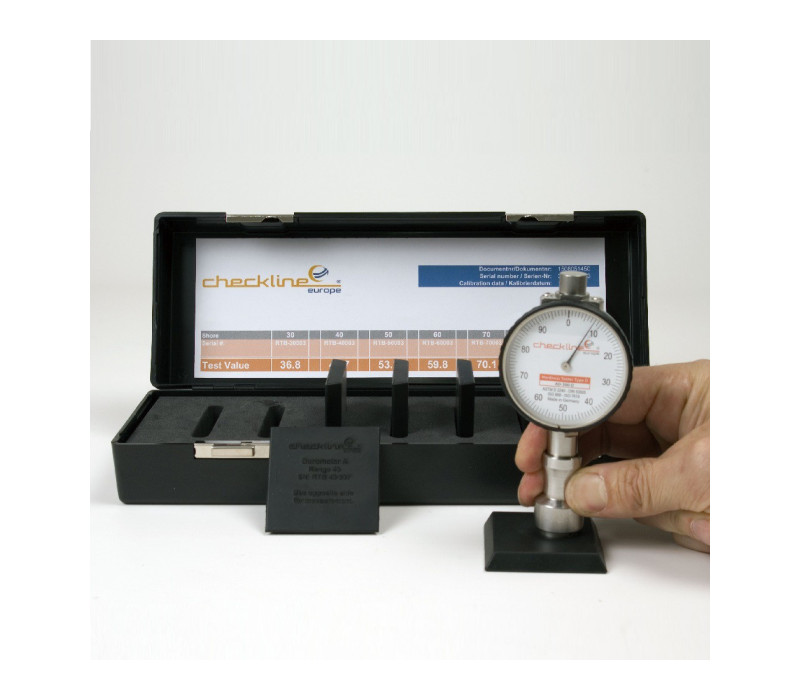

HB-TBK-A Shore A Test Block Kit


  • 7 test blocks: shore range 30 to 90
  • According to DIN ISO 7619-1
  • Calibration Certificate

More details

HB-TBK-A Shore A Test Block Kit

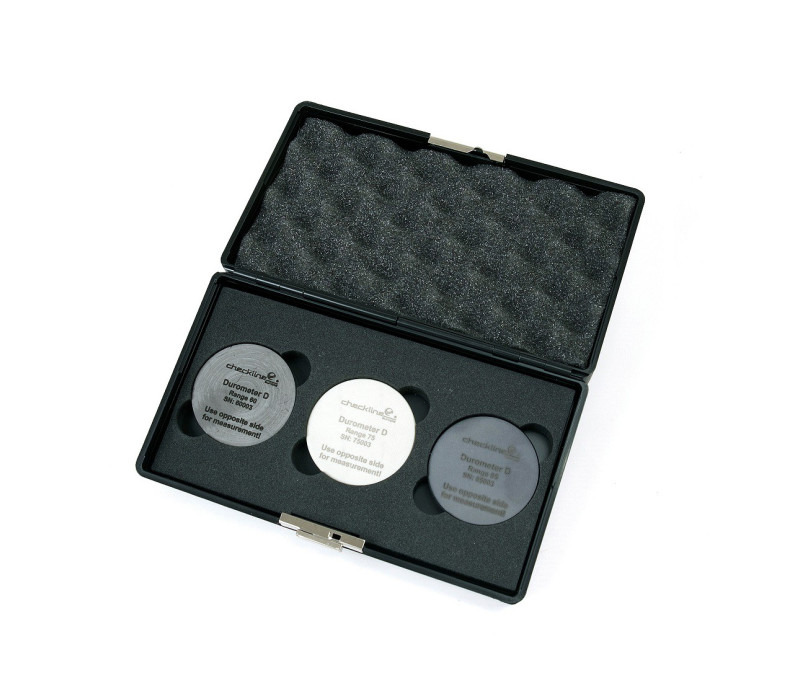

HB-TBK-D Shore D Test Block Kit



More details

HB-TBK-D Shore D Test Block Kit

Video

Complete Kit

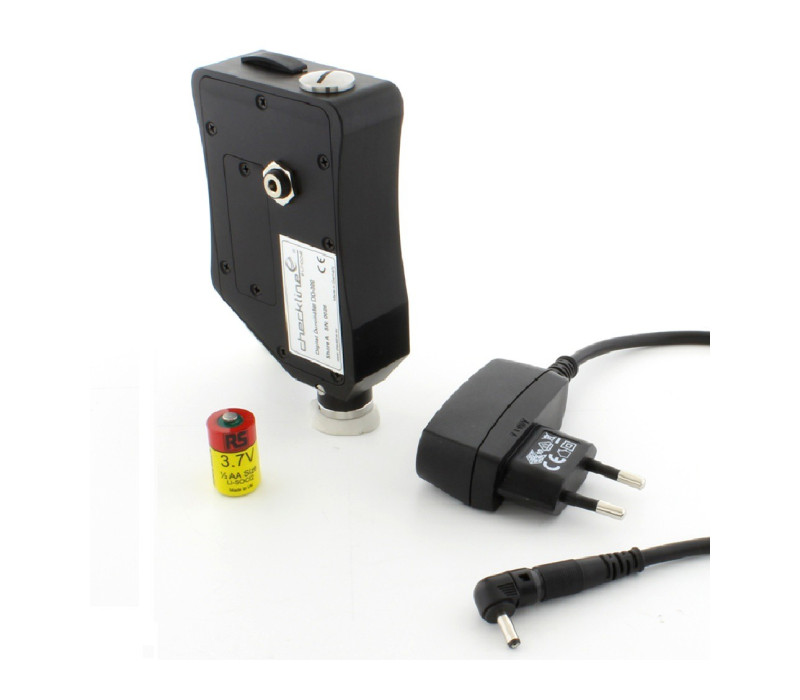

The DD-300 Durometer is supplied with:

  • a plastic foam fitted case
  • an (100 - 240) AC power supply
  • a manual
  • a calibration certificate
  • a battery


Specifications
Measuring range
0.5 - 100 units
Resolution
0.1
Display
LCD digit 8 mm high
Data Output Port
Opto RS232
Battery
Re-chargeable 3.6V 1/2AA Size LI-SOCl2
Continuous Operating Time Battery
Approx. 18 hours
Auto Off
After approx. 1 minute
Power Supply
Input - 100-240 VAC
Output: 5 VDC 650mA
Dimensions
(Height x Width x Depth)
112 x 64 x 26 mm
Weight (net)
250 g
Warranty
1 year
Accuracy
± 0.5

Conformance to International Standards
Model ASTM D2240 DIN 53505 ISO 868 ISO 7619
DD-300-A
DD-300-B
DD-300-C
DD-300-D
DD-300-DO
DD-300-O
DD-300-OO
Type Indentor Shape Force
A

Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls.
822 Gr
B

Sharp cone point, 30º Included Angle
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
822 Gr
C

Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks.
4536 Gr
D

Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermo plastics, flooring and bowling balls.
4536 Gr
DO

3/32" Spherical
Dense granular material, textile windings.
4536 Gr
O

3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
822 Gr
OO

3/32" Spherical
Light foams, sponge rubber gels, animal tissue.
113 Gr

Buy Now
Products

Product name
Price
Quantity
DD-300-A Digital Durometer type A
€ 1.495,00
DD-300-B Digital Durometer type B
€ 1.495,00
DD-300-C Digital Durometer type Shore C
€ 1.495,00
DD-300-D Digital Durometer type D
€ 1.495,00
DD-300-O Digital Durometer type O
€ 1.495,00
DD-300-OO Digital Durometer type OO
€ 1.495,00
DD-300-DO Digital Durometer type DO
€ 1.495,00
DD-300-ASKER-C Digital Durometer type Asker C
€ 1.595,00

Accessories

Product name
Price
Quantity
OS-DD-300 adapter for DD-300 Series to OS-300 Test Stand
€ 29,00
DD-300-SOFT Software for DD-300 Series Durometer
€ 740,00
HB-TBK-A Shore A Test Block Kit (7 blocks) DIN ISO 7619-1
€ 295,00
HB-TBK-D Shore D Test Block Kit (3 blocks) DIN ISO 7619-1
€ 196,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
