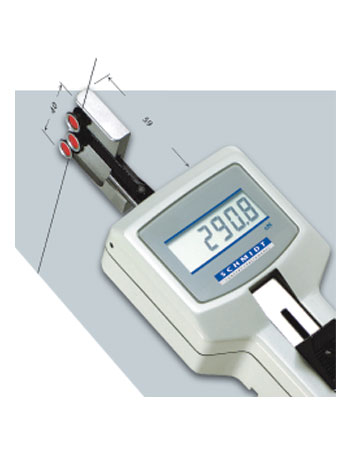

DTVB - DTVX Digital tension meter with measuring head rotated by 90°


Made in GermanyTension meter with small rotated measuring head, where access space is limited or where filaments run close together.
The model DTVB is recommended where the standard model DTMB cannot be used. The model DTVX is a special purpose model for when the standard model DTMX cannot be used.

Note: This model does not include a material thickness compensator

Features
  • Turned-up outer finger edges guide the running filament into the roller grooves
  • Small, ball-bearing mounted, V-grooved guide rollers
  • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
  • Rugged aluminium housing
  • Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
  • Length of measuring head approx. 59 mm
  • Everything in operator's view:
    - the guide rollers
    - the measured material
    - the readings
  • Ball-bearing mounted, V-grooved guide rollers
  • Battery operated (AC adapter for continuous operation available)
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Tension Ranges
ModelRanges SCHMIDT Calibration Material*
DTVB-200 2.0-200.0 PA: 0.12 mm Ø
DTVB-500 5.0-500.0 PA: 0.20 mm Ø
DTVB-1000 50-1000 PA: 0.30 mm Ø
DTVB-2000 200-2000 PA: 0.50 mm Ø
DTVX-200 2.0-200.0 PA: 0.12 mm Ø
DTVX-500 5.0-500.0 PA: 0.20 mm Ø
DTVX-1000 50-1000 PA: 0.30 mm Ø
DTVX-2000 200-2000 PA: 0.50 mm Ø
Other units of measure available, such as g.

Measuring Head Width 40 mm (Outer distance between outside guide rollers)
Measuring Head Length 59 mm

* Suitable for 95% of applications - PA = Polyamide Monofilament

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Complete Kit
Delivery includes:
Tension meter with carrying case and batteries, operating instructions in English or German as requested

Specifications
Calibration:According to SCHMIDT factory procedure
Accuracy:for 10% to 90% of range:
± 0.5% full scale and ± 1 digit
remaining range and other calibration material:
± 3% full scale and ± 1 digit
Overrange:Approx. 15% full scale, without accuracy guarantee
Overload protection:100% of tension range
Measuring principle:Strain gauge bridge
Measuring roller deflection:0.2 mm max.
Signal processing:Digital
Measuring frequency:62 measurements/sec
Converter:12 bit A/D
Temperature coefficient:Gain: less than ± 0.01% full scale/°C
Zero point: less than ± 0.3% full scale/°C
Display:4-digit LCD, 12 mm high
Display update rate:0.5,1,2 or 4 seconds selectable
Memory:Last, MIN, MAX, PEAK values
Field adjustment:± 7 steps in 1.5% increments
Temperature range:10 - 45ºC
Air humidity:85% RH, max.
Power supply:4 size AA batteries 1.5 V
(about 20 hours of continuous use)
Auto power off:After 2 minutes of non-use
Housing material:Die-cast aluminium
Housing dimensions:235 x 76 x 45 mm (L x W x H)
Weight, net (gross):approx. 680 g (1500 g)
Specifications for Model DTVX, same as Model DTVB plus:

Extended memory:up to 100 tension values, average, standard deviation
Digital output:RS232C (4800, 8, N, 2)
Analog output:0-1 V DC (conversion rate 16 ms)
Digimatic:Mitutoyo
