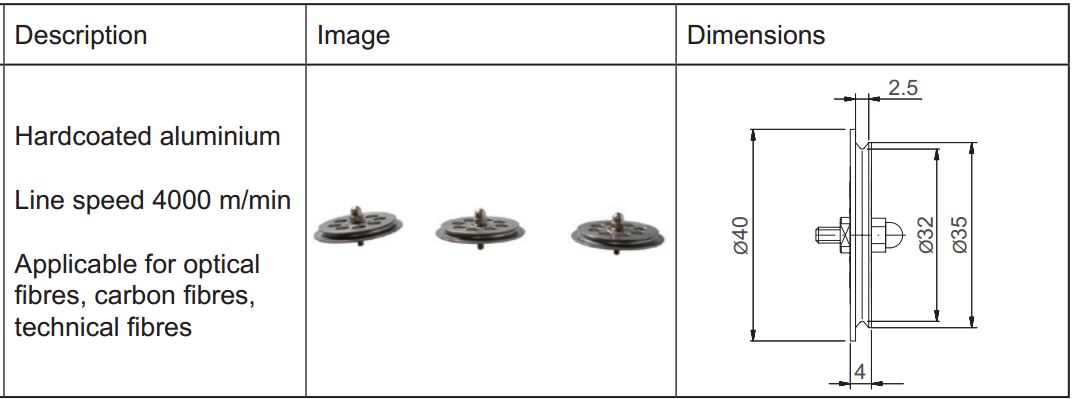

DTFB - DTFX, <b>Standard Guide Roller </b><br>hardcoated aluminium for line speeds up to max. 4000 m/min

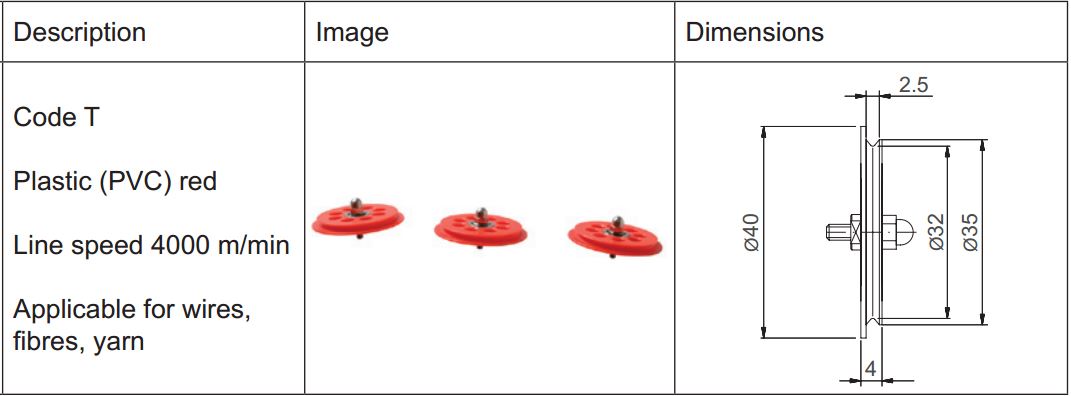

DTFB - DTFX, <b>Guide Roller Code T</b><br> 	plastic red (PVC) for line speeds up to max. 4000 m/min

DTFB - DTFX Digital Tension meter with large rollers


Made in GermanyDigital Tension meter with large rollers to minimize bending of sensitive materials like fiber optics, carbon and technical fibers.
The model DTFB is recommended where the DTMB cannot be used.
The DTFX is can be used in places where the DTMX cannot be used.

Note: This model does not include a material thickness compensator.


Tension meter

Features
  • Large, V-grooved guide rollers with 32 mm groove diameter, ball-bearing mounted
  • Special guides on the bracket assembly permit easy material acquisition
  • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
  • Rugged aluminium housing
  • Specific Test Report with calibration report optionally available
  • Large bending radius assures gentle handling of the material being measured
  • Everything in operator's view:
    - the guide rollers
    - the measured material
    - the readings
  • Ball-bearing mounted, V-grooved guide rollers
  • Battery operated (AC adapter for continuous operation available)

Tension Ranges
ModelRanges SCHMIDT Calibration Material** Resolution Measuring Head Width*
DTFB-200 2 - 200 cN PA: 0.12 mm Ø0.1 cN 140
DTFB-500 5 - 500 cN PA: 0.20 mm Ø0.1 cN 140
DTFB-1000 50 - 1000 cN PA: 0.30 mm Ø0.1 cN 140
DTFX-200 2 - 200 cN PA: 0.12 mm Ø0.1 cN 140
DTFX-500 5 - 500 cN PA: 0.20 mm Ø0.1 cN 140
DTFX-1000 50 - 1000 cN PA: 0.30 mm Ø0.1 cN 140
Other units of measure available, such as g.
** Suitable for 95% of applications - PA = Polyamide Monofilament

Measuring Head Width* 140 mm (Outer distance between outside guide rollers)

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Guide Rollers
Order Code Line Speed
...m/min
Roller Material
Standard 4000Hardcoated aluminium
Code T 4000plastic red (PVC)

Complete Kit
Delivery includes:
Tension meter with carrying case and batteries, operating instructions in English or German as requested

Specifications
Model DTFB:

Calibration:
According to SCHMIDT factory procedure
Accuracy:
for 10% to 90% of range:
± 0.5% full scale and ± 1 digit
remaining range and other calibration material:
± 3% full scale and ± 1 digit
Overrange:
Approx. 15% full scale, without accuracy guarantee
Overload protection:
100% of tension range
Measuring principle:
Strain gauge bridge
Measuring roller deflection:
0.2 mm max.
Signal processing:
Digital
Measuring frequency:
62 measurements/sec
Converter:
12 bit A/D
Temperature coefficient:
Gain: less than ± 0.01% full scale/°C
Zero point: less than ± 0.3% full scale/°C
Display:
4-digit LCD, 12 mm high
Display update rate:
0.5,1,2 or 4 seconds selectable
Memory:
Last, MIN, MAX, PEAK values
Field adjustment:
± 7 steps in 1.5% increments
Temperature range:
10 - 45ºC
Air humidity:
85% RH, max.
Power supply:
4 size AA batteries 1.5 V
(about 20 hours of continuous use)
Auto power off:
After 2 minutes of non-use
Housing material:
Die-cast aluminium
Housing dimensions:
235 x 76 x 45 mm (L x W x H)
Weight, net (gross):
approx. 680 g (1500 g)
Specifications for Model DTFX, same as Model DTFB plus:

Extended memory:
up to 100 tension values, average, standard deviation
Digital output:
RS232C (4800, 8, N, 2)
Analog output:
0-1 V DC (conversion rate 16 ms)
Digimatic:
Mitutoyo
