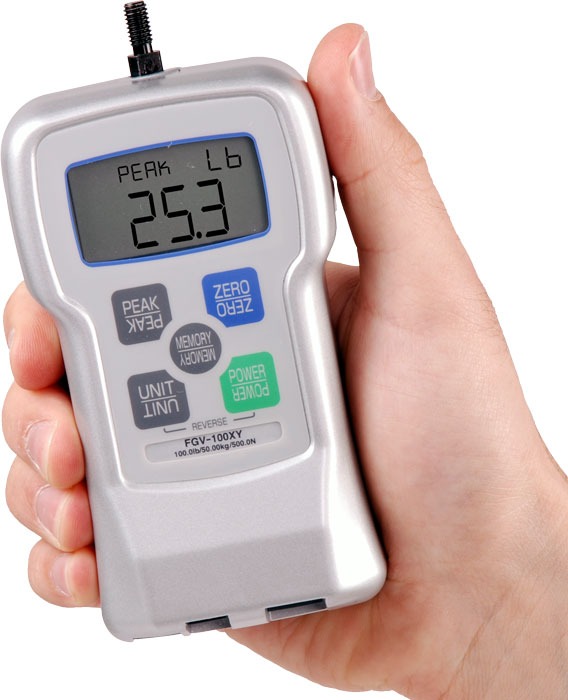

FGV-XY Digital Force Gauge with USB Output


9 Ranges up to 200lbs
Measures Push / Pull Force

The all new FGV-XY series force gauge delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software & cable supplied at no charge.

Force values can be transferred in real time continuously or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation.

The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.


Features
  • 1000 Hz Sample Rate
    captures true peak values even those occurring over very short time intervals
  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility
  • 9 separate capacities from 0.5 Lb to 200 Lb
    select the best range without forfeiting accuracy
  • 200% Overload Capacity
    minimizes the likelihood of costly repairs
  • Rugged Die Cast Aluminum Housing & Rugged Construction
    provides exceptional durability even in the toughest field applications
  • 2-Year Warranty
  • Selectable Auto-Shut Off
    prolongs battery life, while allowing constant use when powered via supplied AC-adapter
  • Small Size
    Ergonomic design provides comfort for hand held testing
  • Automatic Calculation & Display of Statistics
    provides immediate results and analysis of your force testing
  • 3 Memory Modes
    optimize data storage for any application transferring data to PC/Laptop when convenient
  • Built In User-Set Hi-Lo Alarm Limits
    perform quick and easy ‘Go-No Go’ testing with visual LCD indicator when "out of tolerance"
  • Includes traceable calibration certificate
  • Reversible Display
    optimized for use as both a handheld gauge or mount upside down on a test stand

Downloads

Tension Ranges
ModelRanges Resolution
FGV-0.5XY 0.5 lb
2 N
200 g
8 oz
0.001 lb
0.001 N
0.1 g
0.01 oz

FGV-1XY 1 lb
5 N
500 g
16 oz
0.001 lb
0.001 N
0.1 g
0.01 oz

FGV-2XY 2 lb
10 N
1000 g
32 oz
0.001lb
0.01 N
1 g
0.01 oz

FGV-5XY 5 lb
20 N
2 kg
0.001 lb
0.01 N
0.001 kg

FGV-10XY 10 lb
50 N
5 kg
0.01 lb
0.01 N
0.001 kg

FGV-20XY 20 lb
100 N
10 kg
0.01 lb
0.1 N
0.01 kg

FGV-50XY 50 lb
200 N
20 kg
0.01 lb
0.1 N
0.01 kg

FGV-100XY 100 lb
500 N
50 kg
0.1 lb
0.1 N
0.01 kg

FGV-200XY 200 lb
1000 N
100 kg
0.1 lb
1 N
0.01 kg



Complete Kit
The FGV-XY force gauge is supplied as a complete kit including:
- FGV-XY gauge,
- AC adapter/charger,
- carrying case,
- hook, chisel,
- flat head,
- notched head,
- hanger,
- cone head,
- thread adapter,
- extension rod,
- USB cable,
- instruction manual,
- foam-fitted carrying case.

Standard Attachments

Standard Attachments


Related Products

FGS-100H Manual Hand Wheel Operated Test Stand


  • Sturdy, all steel construction

More details

FGS-100H Manual Hand Wheel Operated Test Stand

FGS-200PV E-Force Test Stand (200 lb capacity)


  • Auto reverse for test modes
  • Hands off operation, reduces errors, speeds tests

More details

FGS-200PV E-Force Test Stand (200 lb capacity)

FTS-X Force Test System


  • 1000 Hz Sample Rate
    captures true peak values even those occurring over very short time intervals
  • Consists of the FGV-XY Digital Force Gauge and FGS-100H Manual Hand-Wheel Test Stand

More details

FTS-X Force Test System

Cic-Force Calibration Force Gauge


  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
  • Possibility to adjust and repair

More details

Cic-Force Calibration Force Gauge

Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 1074

Dimensions
Dimensions FGV-XY


Specifications
Measuring ModesRealtime, Compression Peak, Tension Peak
Display Update RateUser Selectable: 1, 2, 3, 5, 10, 20 times per second
Sampling Rate1000 times per second (1000Hz/1KHz)
Accuracy± 0.2% F.S.
Temperature DriftGain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function.
DisplayMain display: 4-digits 12mm high, Reversible
Units display: 3-digits 7mm high
Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold)
Overload200% of Full Scale
On Model FGV-200XY: 150% F.S.
TrackingUser Selectable (ON/OFF)
USB OutputAllows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C OutputAllows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator OutputOpen-collector output (Max DC30V/5mA).
PowerRechargeable Nickel hydride battery or AC adapter/charger. Usable while charging.
Operating TimeApproximately 8 hours after a full charge. Charging Time: 16 Hours Max.
Auto Power OffDefault is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Memory functionContinuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation)
Comparator functionUser Selectable: HI and LO
Temperature range0 ~ 40° C (-32 ~ 104° F)
Humidity range35 ~ 85% RH
Dimensions147mm (L)x 75mm (W) x 38mm(H)
WeightApprox. 450g
On Model FGV-200XY: Approx. 500g
Accessories(Included)AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application SoftwareApplication software ( USB version): Available at www.shimpoinst.com/software for free.
