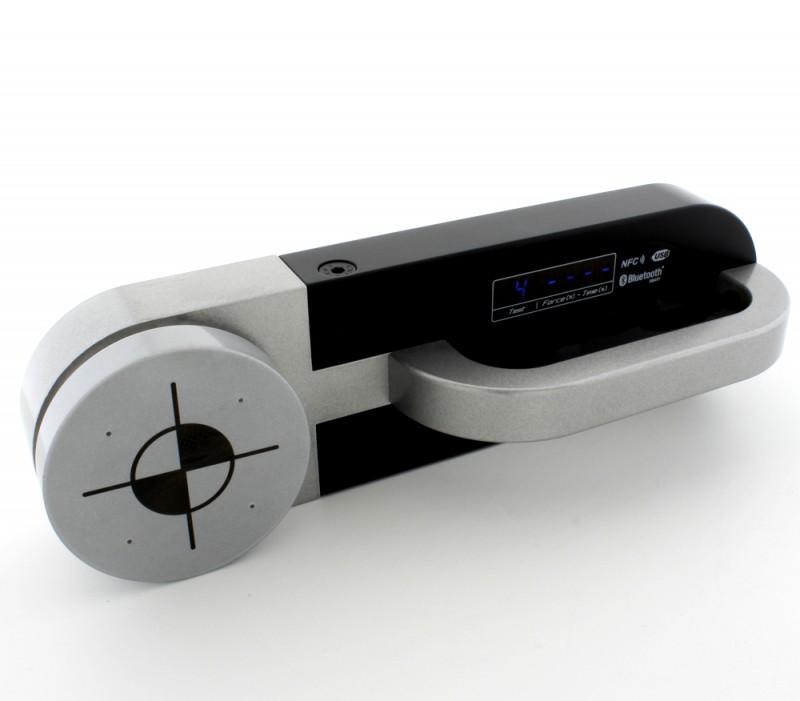

BlueForce Impact Force Gauge


BlueForce Smart - Impact force gauge with USB & GSM and software for CE certification of power-operated gates and doors .

BlueForce Smart is a high quality impact force gauge for automatic/power operated doors and gates that complies with standards EN12453 (former EN12445), EN16005, EN60335-2-95, DHF UK Norms.

BlueForce is one of a kind, with its GSM and USB interface, as well as integrated GPS geolocation.

Thanks to the PC-LINK mode, BlueForce can be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values. It simultaneously enables immediate access to test results.

The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless maneuverability. The handle is easy to remove by using the supplied key and can be rotated by 180° (i.e. turned upside down).

The Blueforce Smart Pro Kits are available in 3 versions:

  • Blueforce Smart Pro Kit
  • Blueforce Smart Pro Plus Kit (Blueforce Smart Pro Kit & Blueforce 50V003 - Linear Extension)
  • Blueforce Smart Pro Print Kit (Blueforce Smart Pro Plus Kit & FTP Thermal Printer)


Available accessoires:

  • Blueforce 50V003 - Linear Extension
  • BlueForce 50V004-C - Angular Extension with bag
  • Blueforce 50V012 - Vertical Extension
  • Blueforce 50V020-G - FTP Thermal Printer
  • Blueforce 50V011 -Extreme carry-case




Accessories

50V003 Straight Extension


  • Compliant with EN12453
  • Specific distances: 30cm and 50cm

More details

50V003 Straight Extension 127548

50V004-C Angular Extension


  • Compliant with EN12453
  • Vertical and angular measurements of variable length from 1100mm to 2500mm

More details

50V004-C Angular Extension 127549

50V012 Vertical Extension


  • Compliant with EN12453
  • For Impact Force Measurements from 300mm or 500mm from Ground

More details

50V012 Vertical Extension 127550

50V020-G FTP Thermal Printer for BlueForce Smart Pro


  • Prints Instant Reports using Bluetooth
  • For BlueForce Smart PRO Testers ONLY

More details

50V020-G FTP Thermal Printer for BlueForce Smart Pro 127551

50V011 Extreme carry-case


  • IP67 rated
  • Constructed in 100% recyclable materials

More details

50V011 Extreme carry-case 127552

Features
  • Memory capacity increased by 60%: enables storage of an impressive 80 tests on the instrument
  • Options include: sending, deleting and browsing saved tests (through an interactive menu)
  • BlueForce Smart is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 80 measurements to be saved
  • New blue led alphanumerical display: The indestructible display with 7 segments is even brighter and more legible thanks to the blue colouring
  • New built-in internal clock: for simpler and quicker identification of the tests performed, thanks to automatic memorisation of the date and time of measurement.
  • New generously sized and sturdy carry-case
  • Direct display of numerical test parameters: dynamic force, dynamic time, average static force, final force.
  • USB port: enables connection of the instrument to a PC with Windows OS to download and manage tests performed with the supplied software
  • GSM interface for quick network communication
  • Integrated GPS geolocation

Complete Kit

The complete BlueForce kit is supplied:

  • BlueForce Smart Pro Instrument
  • Carry-case with pre-formed interior
  • USB cable for PC
  • Hex wrench for handle disassembly
  • Instructions / Software / Certificate of Calibration downloadable from download section

the BlueForce Smart Pro Plus kit includes additionally the 50V003 extension.



360 degree photo

Specifications
Accuracy0 - 400 N: 1%
401-1000 N: 2%
1001 - 2000 N: 4%
Force measurement resolution1 N
Force measurement range0 - 2000 N (mechanical stop at approx. 2100 N)
Current Absorbedmin. 4 mA, average 12 mA, max. 80 mA
Measuring Interval6 sec. sampling 1 Ksmp/s
Memory capacity80 tests
Maximum force measurement error margin: range from+/-1% F.S; from 400 to 1000N: +/-2% F.S; from 1000 to 2000N: +/-4% F.S;
Dynamic time measurement resolution0.01 s
Interface<i class="fa fa-usb" aria-hidden="true"></i> USB 2.0 <br/><i class="fa fa-bluetooth "></i> BLUETOOTH® Ver. 4.1 (enabled via password)<br/>NFC per ISO/IEC 14443 & NFC Forum Type 4
GSM
Power supplyRechargeable Lithium-ion battery
Testing StandardsComplies with EN12445, EN12453, EN16005, EN60335-2-95
Weight1.6 kg ± 10%
Dimensions (L x W x H)280 mm X 80 mm X 50 mm ± 5%
Warranty2 years

Product video


Optional Accessories
Linear Extension
Angular Extension

During the use, the instrument has to be supported in a way to not alter the results of measurements.

The optional accessories, thanks to the fast-joint mechanism, allow the user to carry out measurements by using only one hand. With the other hand, the user is able to drive the opening/closing device.

There are two versions available: the Linear Extension, for measures at 30 or 50 cm and the Angular Extension, for measures from 1.25 m to 2.5 m. This also requires use of the Straight Extension.

Buy Now
Products

Product
Price
Quantity
138191
Blueforce Smart Pro Kit - Impact Force Gauge
€ 1.685,00
138187
Blueforce Smart Pro Plus Kit - Impact Force Gauge + Straight Extension (50V003)
€ 1.855,00
139410
Blueforce Smart Pro Print Kit - Impact Force Gauge + Straight Extension (50V003) & Thermal Printer
€ 1.985,00
135416
Blueforce Smart Plus Kit - Impact Force Gauge + Straight Extension (50V003)
€ 1.885,00

Accessories

Product
Price
Quantity
132334
Blueforce 50V003 - Linear Extension
€ 190,00
132335
BlueForce 50V004-C - Angular Extension with bag
€ 288,00
138190
Blueforce 50V012 - Extension Verticale
€ 175,00
139412
Blueforce 50V020-G - FTP Thermal Printer for BlueForce Smart Pro
€ 240,00
139413
Blueforce 50V011 Extreme carry-case
€ 98,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
