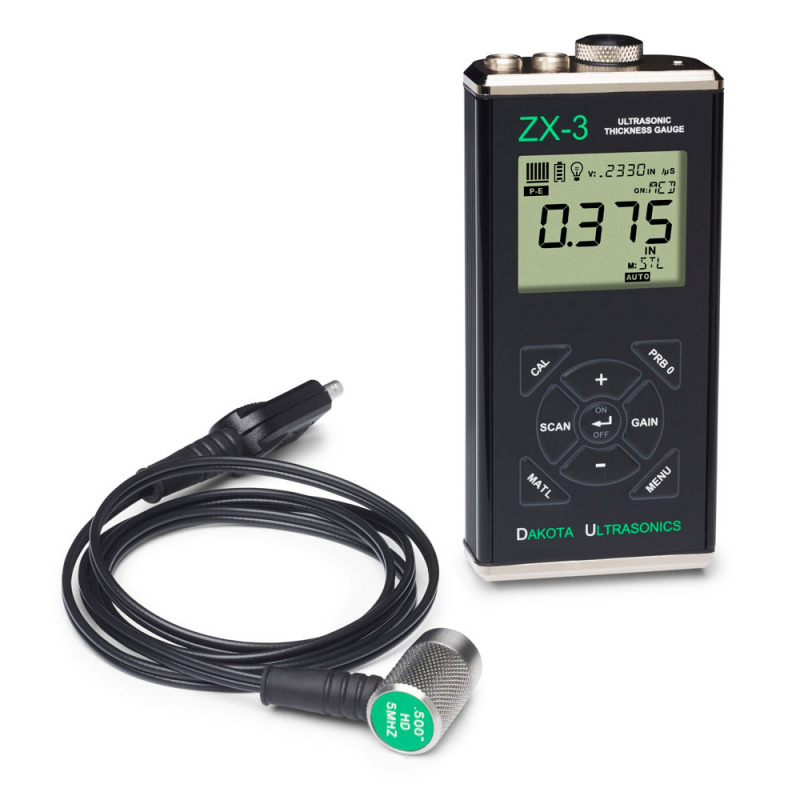

ZX-3 Ultrasonic Wall Thickness Gauge


Made in the USA

The Dakota ZX-3 Wall Thickness Gauge offers further features to the ZX-2, such as the spossibility to select from 8 preset materials and the possibilty to register 2 custom material velocities. In addition the material velocity can be calibrated to a material sample with known thickness and the velocity is automatically calculated accordingly.

Wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics can be measured from one side and up to a thickness of 915 mm depending on material and probe.

2 point calibration to two samples of known thickness can also be done for optimal linearity. The velocity is then automatically calculated for highest accuracy and linearity between the low and high calibration points.

The Dakota ZX-3 Wall Thickness Gauge also provides a Single Thickness Reading mode and Scan mode (probe is dragged over a large measuring surface and minimum thickness reading registered during the "scan"is indicated).

The ZX-3 is also perfectly adapted to be used under hars conditions: the probe is waterproof and can be submerged in water. Furthermore, the gauge is impact-resistant and environmentally sealed (IP65).


Features
  • Measuring range:
    1.00 - 199.9 mm (with standard probe) - 0.63 - 914,4 mm (depending on probe and material)
  • Resolution of 0.01 mm
  • Measuring unit switchable between mm and inch
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Selectable Backlight ON/OFF/AUTO
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • The probe is waterproof and can be submerged in water
  • Includes NIST Traceable Calibration Certificate
  • 5 Year Warranty

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 8.89 mm
Minimum Radius for Concave Surfaces 76.2 mm
Minimum Radius for Concave Surfaces Minimum Headroom 25.0 mm
Minimum Sample Diameter Minimum Sample Diameter 3.8 mm
Minimum Substrate Thickness - F Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Additional functions

Zeroing:
Automatic or manual zeroing of the test head

Probe diameter:
Specify the probe diameter for increased linearity.

High-speed surface scan:
Shows the lowest value detected during a 100 Hz scan.

Differential mode:
Displays ± deviation from an entered nominal value.

Alarm Mode:
Adjustable maximum and minimum limits. Limit indicated by a visual and an audible alarm.


Complete Kit
The ZX-3 is delivered in a complete set in in a foam-fitted carrying case, consisting of:
  • ZX-3 ultrasonic wall thickness gauge
  • Ultrasonic probe
  • 120 ml coupling fluid
  • NIST traceable calibration certificate
  • 2 AA batteries
  • Operation manual


Accessories

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges 127313

Category Wall Thickness Probes


More details

Category  Wall Thickness Probes 376

TI-25-UW-50 Underwater Probe / Cable Assembly (15 meter)


  • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.
  • 1/2", 5 MHz Probe for wide variety of steel, stainless steel, aluminum and similar applications.

More details

TI-25-UW-50 Underwater Probe / Cable Assembly (15 meter) 126123

Specifications
Total Measuring Range: 0.63 - 914.4 mm (depending on material and probe type)
Measuring Range (Steel): 1.00-199.9 mm (with standard probe T-102-2000)
Resolution: 0.01 mm
Measuring Mode: Pulse-Echo (P-E)
Velocity range: 305 to 18,542 meters/sec
Probe (standard): 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
Display: Large LCD display with 4.5 digits each 1.3 cm high -Adjustable backlight
-Division into individual segments to ensure clear reproduction of advanced information
Display refresh rate: 10 Hz (10 updates/sec)
Battery Type: 2x AA batteries (rechargeable batteries can be used)
Temp. Limits: Material: -20 to 100° C High temperature probes available
Battery Life: 45 hours continuous use
Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Rating: IP65
Weight: 308 grams
Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
Dimensions: 63.5 x 131.3 x 31.5 mm
Certifications: NIST Traceable
Guarantee: Device: 5 Years Probes: 90 Days

Buy Now
Product

Product
Price
Quantity
ZX-3 Ultrasonic Wall Thickness Gauge Complete Kit with T-102-2000 Probe
€ 1.364,00

Accessories

Product
Price
Quantity
A-302-6002 - Protective Rubber Boot For TI-Series Small
€ 86,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
