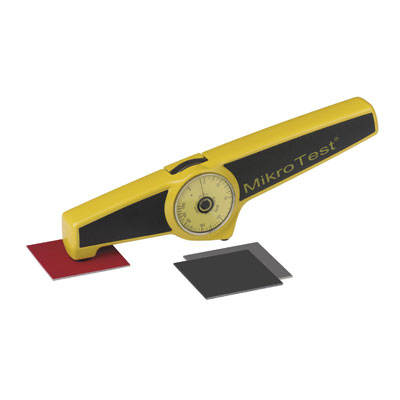

MikroTest Magnetic Coating Thickness Gauge


Made in GermanyThe MikroTest has been the most widely used coating thickness gauge in the world over the last 40 years. The MikroTest complies with the highest technical standards of all analogue magnetic coating thickness gauges. This magnetic coating thickness gauge works on the magnetic attraction principle to measure all non-magnetic coatings on steel and galvanic nickel on steel.

The MikroTest is supplied in 11 different models to be suitable for every requested application. The balanced measuring system ensures accurate readings at any angle: horizontal, vertical and overhead. Also, the gauge allows measurements on curved surfaces. It is also able to provide you with precise measurements in tubes and on round parts due to the automatic operation.

The measurement of the coating thickness is based on magnetic attraction. The attractive force is related to the distance between a permanent magnet and a steel substrate. This distance represents the thickness of the coating under measure. The magnet is lifted from the surface by means of a spring connected to the magnet arm. The force needed to lift the magnet is directly related to the angle of rotation of the torsion spring. This measuring principle is also especially suited for electroplated nickel on copper, aluminium and other non-ferrous metals. This measurement principle ensures fully automatic measurement where no power supply or calibration is required.

MikroTest 5 - Manually operated measuring mechanism. Turn the scale wheel to the forward stop and then slowly turn the wheel backwards by hand until the magnet releases from the object to be measured.

  • MikroTest 5 G - Measuring range 0 – 100 µm, suitable for electroplating and paint coatings on steel
  • MikroTest 5 F - Measuring range 0 – 1.000 µm, suitable for paint coatings on steel

MikroTest 6 - Automatic drive mechanism of the measuring device by tension spring storage. Before measuring the scale wheel is turned as far as it will go and once started the built-in locking mechanism automatically carries out the process of measurement.

  • MikroTest 6 G - Measuring range 0 – 100 µm, suitable for electroplating and paint coatings on steel
  • MikroTest 6 F - Measuring range 0 – 1.000 µm, suitable for paint coatings on steel
  • MikroTest 6 S3 - Measuring range 0,2 – 3 mm, suitable for enamel, plastics or rubber on steel
  • MikroTest 6 S5 - Measuring range 0.5 – 5 mm, suitable for enamel, plastics or rubber on steel
  • MikroTest 6 S10 - Measuring range 2.5 – 10 mm, suitable for enamel, plastics, rubber or fire protection coatings on steel
  • MikroTest 6 S20 - Measuring range 7.5 – 20 mm, suitable for enamel, plastics, rubber or fire protection coatings on steel
  • MikroTest 6 Ni50 - Measuring range 0 – 50 µm, for measurement of electroplated Nickel coatings on non-ferromagnetic subtrates
  • MikroTest 6 Ni100 - Measuring range 0 – 100 µm, for measurement of electroplated Nickel coatings on non-ferromagnetic subtrates
  • MikroTest 6 NiFe50 - Measuring range 0 – 50 µm, for measurement of electroplated Nickel coatings on ferromagnetic steel substrate

Features
  • Highest accuracy with simplest operation
  • No calibration required
  • Simple set-up and measurement
  • All gauges operate without power or battery
  • One point measurement
  • Robust case to protect from mechanical shocks
  • Precision measuring system resistant to solvents

Downloads

Available models:
Model:Range:Tolerance:Application:Min. surfaceMin. curvature radius of the sampleMin. base thickness
5/6 G 0-100 μm± 1 μm or 5% of readingElectroplating and paint coatings on steel**Ø 20mm5 mm convex/ 25 mm concave 0.5 mm
5/6 F 0-1000 μm± 5 μm or 5% of readingPaint on steel**Ø 30mm8 mm convex/ 25 mm concave0.5 mm
6 S3 0.2-3 mm± 5% of readingEnamel, plastic, rubber on steel**Ø 30mm15 mm convex/ 25 mm concave1.0 mm
6 S5 0.5-5 mm± 5% of readingEnamel, plastic, rubber on steel**Enamel, plastic, rubber on steel**Ø 50mm 15 mm convex/ 25 mm concave1.0 mm
6 S10 2.5-10 mm± 5% of readingEnamel, plastic, rubber on steel**Ø 50mm 15 mm convex/ 25 mm concave2.0 mm
6 S20 7.5-20 mm ± 5% of readingEnamel, plastic, rubber on steel**Ø 100mm100 mm convex/150 mm concave 7.0 mm
Ni 50 6 0-50 μm± (1 μm + 5% of reading) Electroplated nickel on non-ferrous substratesØ 15mm5 mm convex/ 25 mm concave--
Ni 100 60-100 μm± (1 μm + 5% of reading) Electroplated nickel on non-ferrous substratesØ 15mm5 mm convex/ 25 mm concav--
NiFe50 60-50 μm± (2 μm + 8% of reading)Electroplated nickel on steel**Ø 20mm10 mm convex/ 25 mm concave0.5 mm
* Referring to the manufacturer's standards ** Steel: ST 33 to ST 60

Complete Kit
The MikroTest is supplied with the following items:
- MikroTest gauge
- Hand strap
- Plastic carrying case
- Operating instructions


Video


Specifications
Range 6 S3: 0.2 mm - 3 mm
6 S5: 0.5 mm - 5 mm
6 S10: 2.5 mm - 10 mm
6 NiFe50: 0 µm - 50 µm
Application 6 S3; 6 S5; 6 S10: enamel, plastic, rubber on steel
6 NiFe50: electroplated nickel on steel
Tolerance 6 S3: ± 5 % - of reading
6 S5: ± 5 % - of reading
6 S10: ± 5 % - of reading
6 NiFe50: ± 2 µm
6 NiFe50: + 8 % - of reading
Minimum Surface 6 S3: Ø 30 mm
6 S5: Ø 50 mm
6 S10: Ø 50 mm
6 NiFe50: Ø 20 mm
Minimum Curvature Radius 6 S3: 15 mm - convex
6 S3: 25 mm - concave
6 S5: 15 mm - convex
6 S5: 25 mm - concave
6 S10: 15 mm - convex
6 S10: 25 mm - concave
6 NiFe50: 10 mm - convex
6 NiFe50: 25 mm - concave
Minimum Base Thickness 6 S3: 1.0 mm
6 S5: 1.0 mm
6 S10: 2.0 mm
6 NiFe50: 0.5 mm
Ambient Temperature -20 °C - 100 °C
Conforming Standards DIN EN ISO 2178, DIN 50 982, ASTM B 499, E 376, D 1186, G 12, B 530, BS 5411, ISO 2361
Dimensions Gauge: 215 mm x 55 mm x 29 mm
Plastic carrying case: 235 mm x 185 mm x 46 mm
Weight Case incl. gauge approx. 560 g
