3000EZ SERIES Coating Thickness Gauge - Easy Operation


Made in Germany2 Models Available:
DCF-3000EZ - Ferrous Only Model
DCFN-3000EZ - Combination Ferrous & Non-Ferrous Model

Range Ferrous: 0-3500 µm (0-140 mils)
Range Non-Ferrous: 0-3000 µm (0-120 mils)

With coating thickness gauges designed for measurement on ferrous metals, non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. can be measured on steel and iron (magnetic induction method).

Coating thickness gauges designed for measurement on non-ferrous metals can measure all electrically insulated coatings such as varnish, paint, anodizing coatings on non-ferrous metals & stainless steel (eddy-current method).

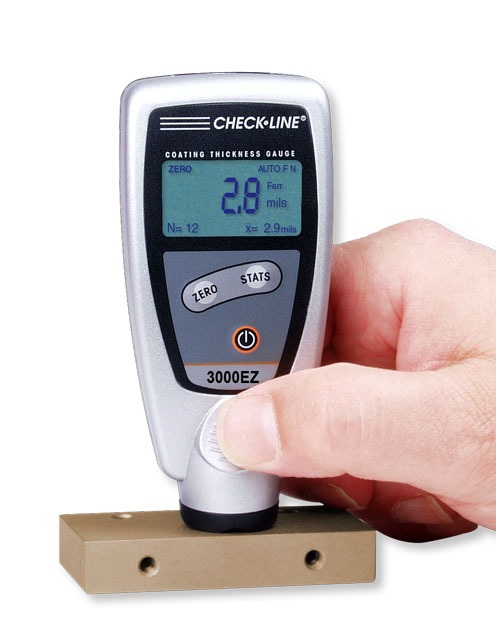

The 3000EZ Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 3000EZ Series will provide years of trouble-free use.


Features
  • Integrated dual sensor with hard metal pole tip
  • Manufacturer's Certificate Included
  • Large back-lit display
  • Live statistics display for up to 99 readings
  • Keypad-selectable English or metric units
  • 1 Year Warranty

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Complete Kit

The 3000EZ Series is supplied as a complete kit with:

  • 3000EZ coating thickness gauge
  • zero-plate
  • plastic test shim
  • 2 AA batteries
  • soft carrying pouch
  • instruction manual
  • manufacturer´s certificate

The DCF-3000EZ is supplied with a
ferrous zero-plate
The DCFN-3000EZ is supplied with a
ferrous and a non-ferrous zero-plate



Related Products

Cic-Coating Calibration Coating Thickness Gauge

br>
  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Measuring Limits
Minimum Radius for Convex SurfacesMinimum Radius for Convex Surfaces0.2" (5 mm)
Minimum Radius for Concave Surfaces2" (50mm)
Minimum HeadroomMinimum Headroom4" (100 mm)
Minimum Sample DiameterMinimum Sample Diameter0.5" (13 mm)
Minimum Substrate Thickness - FMinimum Substrate Thickness - F20 mils (0.5 mm)
Minimum Substrate Thickness - NFe2 mils (50 µm)

Resolution Table
Microns (µm)
0 - 999 µm 1 µm
1.000 - 2.498 mm 0.002 mm
2.500 - 3.500 mm 0.005 mm

Mils
0 - 99.9 mils 0.1 mils
100.0 - 140.0 mils 0.2 mils

Specifications
Gauge versions:DCF-3000EZ
Coating thickness on ferrous metals
DCFN-3000EZ
Coating thickness on ferrous & non-ferrous metals
Range:Ferrous: 0 - 3500 µm (0 - 140.00 mils)
Non-Ferrous: 0 - 3000 µm (0 - 120.00 mils)
Accuracy:3 µm (±0.1 mils) or 3% of reading, whichever is greater
Resolution:see table
Display:Back-lit, 4-digit alphanumeric
Min. Measuring Area:10 mm x 10 mm (0,4" x 0,4")
Min. Curvature Radius:concave: 50 mm (2")
convex: 5 mm (0.2")
Calibration:Factory calibration, zero calibration
Statistics Program:Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp:0 °C to 50 °C (32 °F to 122 °F)
Surface Temp:-15 °C to 60 °C (5 °F to 140 °F)
Storage Temp:-20 °C to 60 °C (-4 °F to 140 °F)
Power:2 AAA, 1.5 V
Dimensions:110 mm x 50 mm x 25 mm (4.3" x 2" x 1")
Weight:90 g (3.2 oz)
Protection Class:IP 52 (proof against dust and dripping water)
Standards:DIN, ISO, ASTM, BS
Warranty:1 year
Calibration Certificate:Included

Buy Now
Products

Product
Price
Quantity
126371
DCF-3000EZ Coating Thickness Gauge
€ 530,00
126372
DCFN-3000EZ Coating Thickness Gauge
€ 665,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
