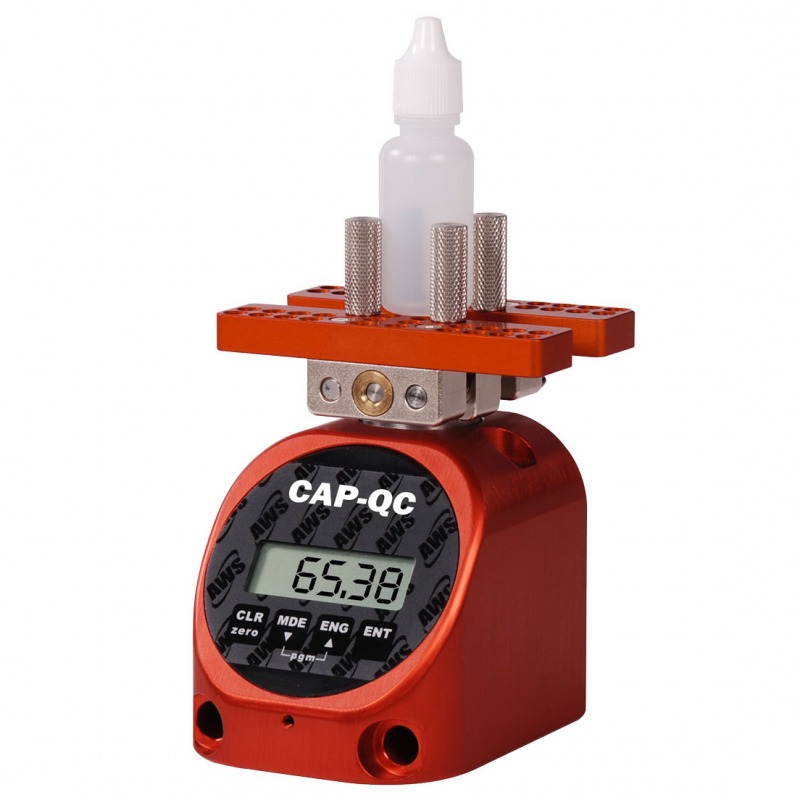

CAP-QC Small Cap & Vial Torque Tester


Made in the USAThe CAP-QC is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. Compact, light weight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test.

Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types from 0.2" up to 3.5" (5.1 - 89.0 mm) including vials, drams, lipstick & perfume packages as well as many other samples.

Capacity: 100 Oz-in / 6.25 in-lb / 70 N-cm
Diameters: 0.2" up to 3.5" (5.1 - 89.0 mm)



Features
  • Bidirectional accuracy of ±1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum construction
  • NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger
  • Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types
  • Includes NIST-Traceable Calibration Certificate

Tension Ranges
ModelRanges Resolution
CAP-QC-100z 100 Oz-in
6.25 in-lb
70 N-cm
4 Active Digits

Related Products

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±1% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modus
Track, Peak
Memory
data storage of up to 999 readings
Data Output
RS-232, Single Value, no continuous output
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, 9V Charger (included)
Weight
3lbs
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data

Buy Now
Product

Product name
Price
Quantity
CAP-QC-100z Torque Tester with Cap Grip & four (4) screw-in posts
€ 1.550,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
