Dual Element Transducers


The Dual Element Ultrasonic Transducers are compatible with the MX, MMX, ZX, MVX, CMX, and UMX-2 thickness gauges only. The transducers can be applied for the testing of cast iron, plastics (polyproplylene, polyethylene, etc.), fiberglass, steels, glass, titanium and aluminum, depending on the transducer’s ultrasonic frequency.

The frequency and crystal diameter are stamped and sorted according to color. Each color defines a specific feature with a corresponding function:

  • HR (High Resolution): Improved resolution close to the surface;
  • CT (Coating Thickness): Works in conjunction with CMX series coating feature;
  • HD (High Damped): Increased resolution for through paint/coating measurement;
  • CPZT (Composite): Insulated PZT crystal with high output for increased signal strength/material penetration.


The dual element transducers can be supplied with three different types of connectors: Potted (Integral), Microdot or Lemo 00. The Potted and Microdot versions can be either “Top” or “Side” entry configurations. The Lemo connectors are only available in ½” diameter transducer configuration, due to space requirements.

The dual element transducers are available in three different size options: 3/16”, ¼” and ½”. However, not all frequencies are available in all three sizes. The frequencies available are 1,0 MHz, 2,25 MHz, 3,5 MHz, 7,5 MHz or 10MHz. Custom sizes are available upon request.

Also, additional High Damped & PZT versions are available in the existing transducer configurations for an additional charge. These items are custom builds only.

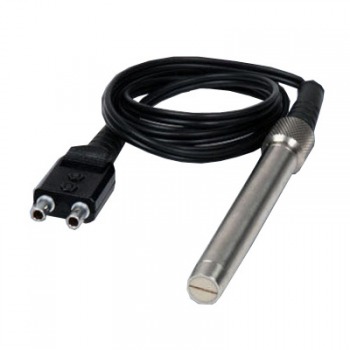

T-002-3300 Transducer

T-002-3300
  • Extra Resolution Transducer
  • Diameter: 1/4"
  • Frequency: 7,5 MHz
  • Potted connector with top entry

T-002-4000 Transducer

T-002-4000
  • Diameter: 1/4"
  • Frequency: 10,0 MHz
  • Potted connector with top entry

T-001-4000 Transducer

T-001-4000
  • Diameter: 3/16"
  • Frequency: 10,0 MHz
  • Potted connector with top entry

T-004-1000 Transducer

T-004-1000
  • Diameter: 1/2"
  • Frequency: 2,25 MHz
  • Potted connector with top entry

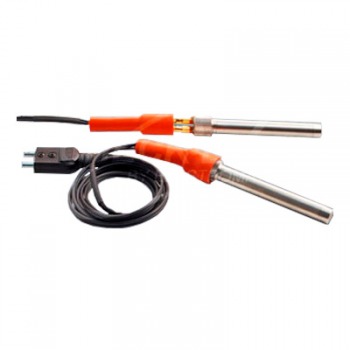

T-042-1000 Transducer

T-042-1000
  • High Temperature Transducer
  • Diameter: 1/4"
  • Frequency: 2,25 MHz
  • Potted connector with top entry

T-042-2000 Transducer

T-042-2000
  • High Temperature Transducer
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

T-042-2700 Transducer

T-042-2700
  • High Damped/High Temperature Transducer
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

T-044-1000 Transducer

T-044-1000
  • Diameter: 1/2"
  • Frequency: 2,25 MHz
  • Potted connector with top entry

T-044-2000 Transducer

T-044-2000
  • Transducer for high temperatures up to 343 °C
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

T-044-2700 Transducer

T-044-2700
  • High Damped/High Temperature Transducer
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

T-074-2906 Transducer

T-074-2906
  • Transducer for TI-UMX2
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with top entry
Price € 741,00
More information

T-074-9906 Transducer

T-074-9906
  • Underwater Transducer
  • Diameter: 1/2"
  • Frequency: 3,5 MHz
  • Potted connector with top entry

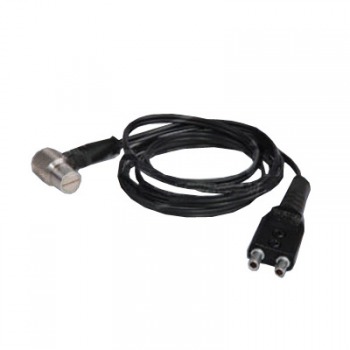

T-101-2000 Transducer

T-101-2000
  • Diameter: 3/16"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-101-2700 Transducer

T-101-2700
  • High Damped Transducer
  • Diameter: 3/16"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-101-2900 Transducer

T-101-2900
  • Coating Thickness Transducer
  • Diameter: 3/16"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-101-3000 Transducer

T-101-3000
  • Diameter: 3/16"
  • Frequency: 7,5 MHz
  • Potted connector with side entry

T-101-3900 Transducer

T-101-3900
  • Coating Thickness Transducer
  • Diameter: 3/16"
  • Frequency: 7,5 MHz
  • Potted connector with side entry

T-101-4000 Transducer

T-101-4000
  • Diameter: 3/16"
  • Frequency: 10,0 MHz
  • Potted connector with side entry

T-102-1000 Transducer

T-102-1000
  • Diameter: 1/4"
  • Frequency: 2,25 MHz
  • Potted connector with top entry

T-102-2000 Transducer

T-102-2000
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-102-2700 Transducer

T-102-2700
  • High Damped Transducer
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

T-102-2900 Transducer

T-102-2900
  • Coating Thickness Transducer
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-102-3300 Transducer

T-102-3300
  • Extra Resolution Transducer
  • Diameter: 1/4"
  • Frequency: 7,5 MHz
  • Potted connector with side entry

T-102-3700 Transducer

T-102-3700
  • High Damped Transducer
  • Diameter: 3/16"
  • Frequency: 7,5 MHz
  • Potted connector with side entry

T-102-3900 Transducer

T-102-3900
  • Coating Thickness Transducer
  • Diameter: 1/4"
  • Frequency: 7,5 MHz

T-102-4000 Transducer

T-102-4000
  • Diameter: 1/4"
  • Frequency: 10,0 MHz
  • Potted connector with side entry

T-104-0000 Transducer

T-104-0000
  • Diameter: 1/2"
  • Frequency: 1,0 MHz
  • Potted connector with top entry

T-104-0600 Transducer

T-104-0600
  • Composite Transducer
  • Diameter: 1/2"
  • Frequency: 1,0 MHz
  • Potted connector with side entry

T-104-1000 Transducer

T-104-1000
  • Diameter: 1/2"
  • Frequency: 2,25 MHz
  • Potted connector with side entry

T-104-2000 Transducer

T-104-2000
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-104-2700 Transducer

T-104-2700
  • High Damped Transducer
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-104-2900 Transducer

T-104-2900
  • Coating Thickness Transducer
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with side entry

T-104-9700 Transducer

T-104-9700
  • High Damped Transducer
  • Diameter: 1/2"
  • Frequency: 3,5 MHz
  • Potted connector with side entry

T-104-9900 Transducer

T-104-9900
  • Coating Thickness Transducer
  • Diameter: 1/2"
  • Frequency: 3,5 MHz
  • Potted connector with side entry

T-174-9700 Transducer

T-174-9700
  • High Damped Underwater Transducer
  • Diameter: 1/2"
  • Frequency: 3,5 MHz
  • Potted connector with top entry

T-212-2001 Transducer

T-212-2001
  • High Temperature (500°C) Transducer
  • Diameter: 1/4"
  • Frequency: 5,0 MHz
  • Microdot connector with top entry

T-214-2001 Transducer

T-214-2001
  • Transducer for high temperatures up to 500 °C
  • Diameter: 1/2"
  • Frequency: 5,0 MHz
  • Potted connector with top entry

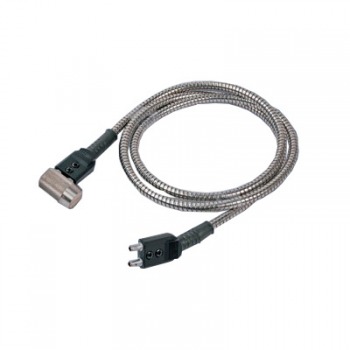

T-904-2009 Transducer

T-904-2009
  • High wear armored cable
  • Diameter: 1/2"
  • Frequency: 5,0 MHz"
  • Lemo connector with side entry

T-132-2110 Transducer

T-132-2110
  • 1/4" - 5MHz dual-element transducer
