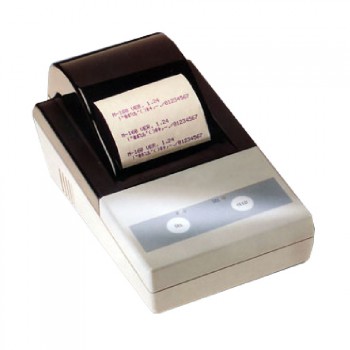

TI-PRINTER Portable Serial Printer for Wall Thickness Gauges


The TI-PRINTER is a battery powered, portable Dot-Matrix printer for ultrasonic wall thickness gauges with a serial output.

Suitable for the following wall thickness gauges:
- TI-25DL
- TI-25DL-MMX
- TI-007
- TI-007DL
- TI-CMXDL
- TI-PVX
- TI-MVX
- TI-MMX-SDL


Features

  • Small, portable and easy to use
  • Prints statistical data from ultrasonic wall thickness gauges with a serial (RS232) output

Related Products

TI-25DL Data Logging Wall Thickness Gauge


  • RS-232C Serial output for downloading stored data to a printer or computer
  • Large, backlit LCD display retains last reading
  • Resolution of 0.001" (0.01 mm)
  • Selectable units of inch or mm
  • Special-purpose probes are offered for a variety of applications
  • Memory for 1000 data points in up to 10 batches
  • Windows compatible data transfer program supplied at no additional cost
  • Includes NIST-Traceable Calibration Certificate
  • CE Certified

More details

TI-25DL-MMX Data Logging Through Paint Ultrasonic Wall Thickness Gauge


  • Resolution of 0.001 inch (0,01 mm)
  • Simple operator controls virtually eliminate training
  • Ability to measure through paint and eliminate coatings
  • Large, backlit LCD display retains last reading
  • Special-purpose probes are offered for a variety of applications
  • Memory for 1000 data points in up to 10 batches
  • RS-232C Serial output for downloading stored data to a printer or computer
  • Switch-selected units for inches or mm
  • For underwater surveying, probe cable lengths up to 50 feet are optionally
  • CE Certified
  • Includes NIST Calibration Certificate

More details


Specifications

Print Method
Impact Dot Matrix
Dimensions
17.8 x 10.2 x 9.5 cm
Print Speed
40 lines per minute
Interface
RS232, 25 pin connector
Power
Internal battery or 7.5 V DC, 750 mA adapter (230 V AC)
Warranty
1 year

Buy Now

Product


Product name
Price
Quantity
TI-PRINTER - Serial printer for wall thickness gauges
€ 342,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
