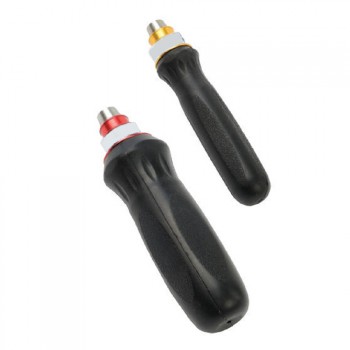

PSE Torque Limiting Screwdriver


The PSE was designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789: 2003 (+/- 6% of setting).
Various models that range from 0,5 cN-m till 13,5 N-m



A specially designed ergonomic grip combined with a smooth reset action reduces operator fatigue
Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.

Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
All models provide bi-directional operation.

Each screwdriver model is only available in package quantity of 10 units.
Calibration label supplied in 4 colors, which can be used to mark pre-set details, date, etc.


Measuring Range

Model American S.I. Metric Drive
PSE25 0.7 – 35 ozf.in 0.5 – 25 cN.m 0.05 – 2.5 kgf.cm 1/4" F/Hex
PSE150 3 ozf.in – 13 lbf.in 2 – 150 cN.m 0.2 – 15.3 kgf.cm 1/4" F/Hex
PSE450 8 ozf.in – 40 lbf.in 6 – 450 cN.m 0.6 – 45.8 kgf.cm 1/4" F/Hex
PSE1350* 10 – 120 in.lbs 100 – 1350 cN.m 10.5 – 138 kgf.cm 1/4" F/Hex
All models are supplied with 10 pcs screwdrivers (same model), 10 pcs individual tool calibration certificates, torque adjusting key and 40 pre-set labels.
*Supplied with 1/4" Sliding T-BAR

Features

  • Accurate process control is ensured by eliminating under and over tightening
  • Wide range of torque applications by offering both bi-directional and one way slipping actions
  • Ideal for safe electronic component assembly as this tool is EPA compliant for use in Electrostatically Sensitive Areas
  • Increased production efficiency by reducing operator fatigue due to a specially designed ergonomic hand grip combined with a smooth tool rest action

Specifications

Repeatability
+/- 6% of reading
Classification
ISO 6789:2003 Classification 2F
Compliance
EPA Compliant

Buy Now

Products


Product name
Price
Quantity
PSE25 Torque Screwdriver (10 Pieces)
€ 1.252,00

PSE150 Torque Screwdriver (10 Pieces)
€ 1.025,00

PSE450 Torque Screwdriver (10 Pieces)
€ 1.074,00

PSE1350 Torque Screwdriver (10 Pieces)
€ 1.241,00

All mentioned prices are excluding VAT & excluding shipment costs.
