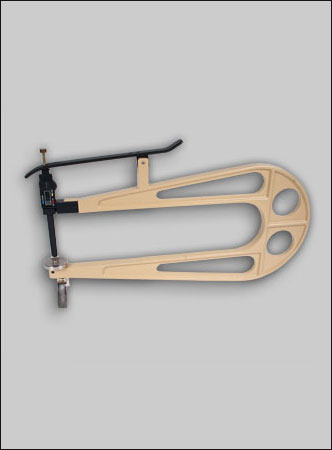

The MDM-840 digital thickness gauge measures the material thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.
Due to its self-closing mechanism, the MDM-840 ensures highest accuracy. The resolution is 0.01 mm throughout the measurement range from 0 to 100 mm.
Thickness gauge with RS 232 output for data collection
Opening by lifting device (lever) - self closing
Zero setting by pushing a button
Measuring by spring force
LCD display with user selectable units (mm or inch)
Calibration certificate included
Depth of Jaw
When ordering the MDM-840 digital thickness gauge, please indicate your desired feeler, for example "MDM-840-B" for the gauge with feeler "B". Only your desired feeler shape is included.
The MDM-840 digital thickness gauge will be deliverd with a transport packing case.
Depth of jaw:
LCD 7 mm high
Weight, net (gross):
1400 g (1450 g)
