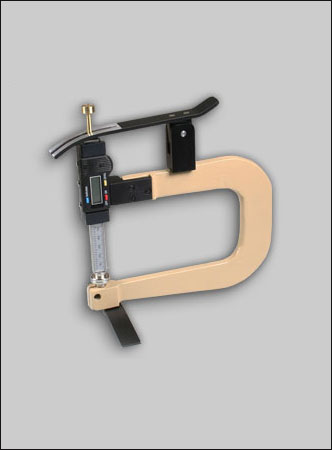

MDM-815-1 Digital Thickness Gauge | MDM-815-1


Made in GermanyThe MDM-815-1 digital thickness gauge measures the thickness of different materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic etc.

Due to its self-closing mechanism, the MDM-815-1 ensures highest accuracy and a resolution of 0.01 mm throughout the measurement range from 0 to 50 mm.


Features
  • RS-232 output for data collection
  • Lifting device (lever) for opening - self closing mechanism
  • Zero setting by button push
  • Measuring by spring force
  • LCD display with user selectable measurement units (mm or inch)
  • Calibration certificate included

Available Models
Model Range Resolution Depth of Jaw
MDM-815-1 0 - 50 mm 0.01 mm 150 mm
MDM-820-1 0 - 50 mm 0.01 mm 200 mm
MDM-830-1 0 - 50 mm 0.01 mm 300 mm
MDM-835 0 - 75 mm 0.01 mm 350 mm
MDM-840 0 - 100 mm 0.01 mm 400 mm

Feeler Shape
When ordering the MDM-815-1, please indicate your desired feeler, for example "MDM-815-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Complete Kit
The MDM-815-1 digital thickness gauge will be delivered with transport packing case.

Specifications
Resolution:
0.01 mm
Measuring range:
50 mm
Depth of jaw:
150 mm
Measuring pressure:
2 N
Measuring principle:
Self closing
Feeler shape:
A/B/C/D/E
Display:
LCD 7 mm high
Measuring system:
Sylvac
Weight, net (gross):
600 g (650 g)
