DMD-830 Digital Thickness Gauge | DMD-830

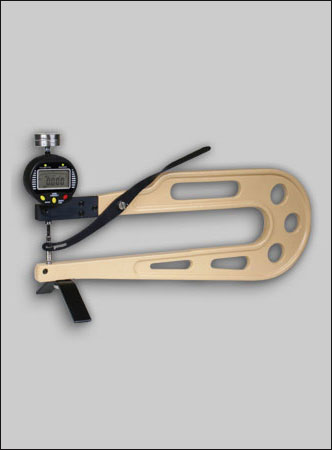

Made in GermanyThe DMD-830 digital thickness gauge determines the thickness of various materials, e.g. leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the DMD-830 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 10 mm.


Features
  • Thickness gauge with RS 232 output for data collection
  • Opening by lifting device (lever) - self closing
  • Zero setting by pushing a button
  • Measuring by spring force
  • LCD display with user selectable units (mm or inch)
  • Calibration certificate included

Available models
ModelRangeResolutionDepth of Jaw
DMD-30 - 10 mm0.01 mm50 mm
DMD-3-10 - 25 mm0.01 mm50 mm
DMD-8200 - 10 mm0.01 mm200 mm
DMD-820-10 - 25 mm0.01 mm200 mm
DMD-8300 - 10 mm0.01 mm300 mm
DMD-830-10 - 25 mm0.01 mm300 mm
DMD-8500 - 10 mm0.01 mm500 mm
DMD-850-10 - 25 mm0.01 mm500 mm

Available feelers
When ordering the DMD-830, please indicate your desired feeler, for example "DMD-830-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications
Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:300 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E
Display:LCD 4 digit, 8 mm high
Measuring system:Sylvac
Weight, net (gross):1000 g (1050 g)

Buy Now
Products

Product
Price
Quantity
137600
DMD-830-A Thickness gauge DMD 830 with feeler A (diameter feeler 6 mm)
€ 435,00
135999
DMD-830-I Thickness gauge DMD 830 with feeler I (diameter feeler 50 mm)
€ 448,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
