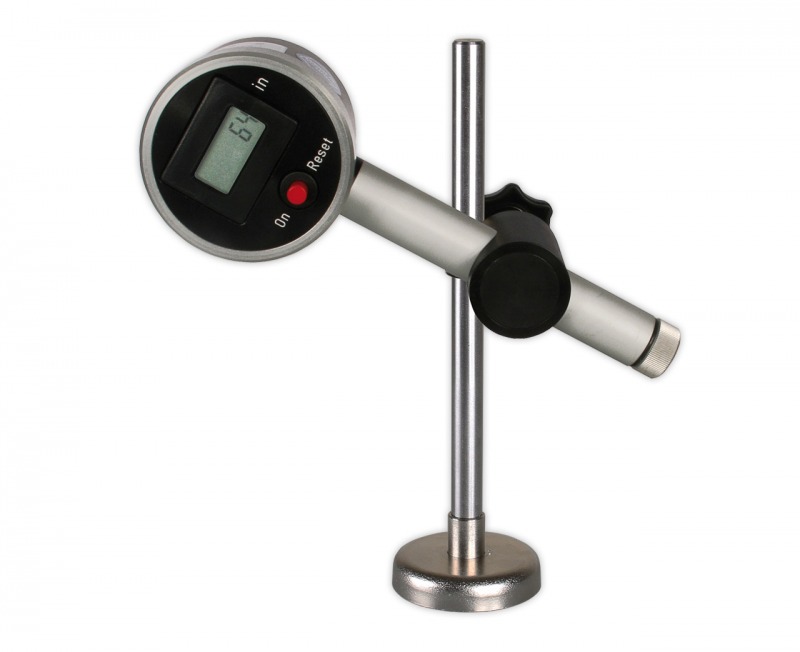

CHECKLINE LM Digital Consumption Meters accurately measure the amount of yarn being fed from a textile machine feeder to a take-up device during one or more cycles or rotations of the machine cylinder.
LM units are ideal for comparing yarn consumption from feed to feed and machine to machine on circular and flat bed knitting machines, and for other textile
processes where yarn length is to be accurately measured.
Two LM types are offered:
Models LMC and LMI manual type, where operator actuates and deactivates the measuring system after one or more operation cycles. (LMC is calibrated for
centimeters; LMI is for inches). The consumption per cycle is then determined by dividing the total yarn consumption by the number of cycles or revolutions
Models LMC-S and LMI-S magnetic sensor type, where operator pre-sets number of cycles or revolutions (0-99) for the measuring period, eliminating the need to visually count the number of cycles. A small magnet is affixed to the rotating or moving part of the machine while the sensor is mounted on the frame. Each time the magnetic passes the sensor it actuates the instrument’s electronic counter.
Operation - LMI-S / LMC-S
In "Auto" mode a permanent magnet is mounted to a revolving part of the machine. The sensor supplies the start/stop signal. The predetermined number of revolutions (frome 1 - 99 rev. set on the rotary switches at the front side) are counted and the comulated yarn consumption is displayed.
In "Basic" mode the unit works without external sensor; Operator determines measuring time by pushing start - stop button.
Advantage of LM use:
Continued measuring of the yarn consumption of all knitting feeds ensures uniform stitch lengths and hence homogeneous fabric structure.
Predetermined fabric specifications can be reliably maintained and repeated.
The quantities of each type of yarn which are required for producing particular fabrics can be simply and accurately calculated.
The use of LM ensures the same fabric quality, respectively structures can be produced on different machines in the same quality.
Magnetic mounting base and universal tube clamp for quick and easy setup.
Precision, ball-bearing-mounted, low-inertia measuring wheel is rubber coated to eliminate yarn slippage
Powered by two AAA batteries (included)
Surface-mount electronics and a rugged, metal housing provide trouble-free operation in tough production environments.
Can be used on yarns/fibers operating at line speeds up to 1500 m/min
0 – 99,999 cm (or Inches)
+/- 0.2% of displayed value, +/- 1 digit
1 cm (or 1 Inch)
LCD, 8mm high
Measuring Wheel Access
4mm wide x 270
10 to 45 °C (50 to 120 °F)
Pre-settable Cycle Capacity
0 – 99 (LMI-S or LMI-C models only)
LMI/LMC: Length meter with 2 batteries, carrying case, 1 magnetic base, Certificate of Compliance of the order 2.1, operating instruction
LMI-S / LMC-S: Length meter with 2 batteries, carrying case, 1 magnetic base, 1 sensor with 1 m cable, 1 magnet, Certificate of Compliance of the order 2.1, operating instruction
