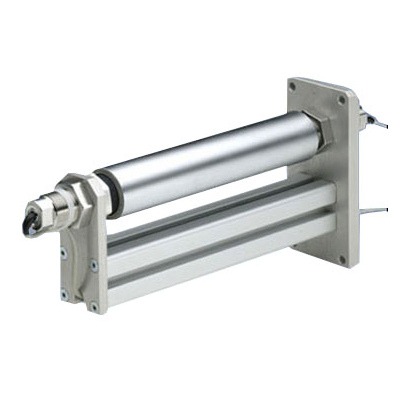

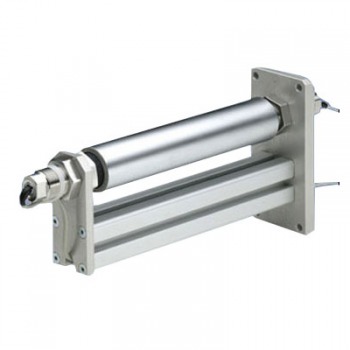

WTM-1R Web tension measuring module


Made in Germany

Features

  • Based on 2 RFS Tension Sensors
  • Customer specified roll material
  • Labyrinth seals / V-sealing rings
  • Customer specified roll dimensions
  • Easy-running self-aligning bearings arranged with fixed and floating bearing
  • Pre-assembled, ready to be installed as measuring module
  • Available in 15 rated load ranges: 0 to 2N ... 0 to 2000N

Tension Ranges

Model Ranges Ranges g/kg
WTM-1R-200 0-2 N 0-200 g
WTM-1R-400 0-4 N 0-400 g
WTM-1R-1K 0-10 N 0-1 kg
WTM-1R-2K 0-20 N 0-2 kg
WTM-1R-4K 0-40 N 0-4 kg
WTM-1R-10K 0-100 N 0-10 kg
WTM-1R-20K 0-200 N 0-20 kg
WTM-1R-40K 0-400 N 0-40 kg
WTM-1R-100K 0-1000 N 0-100 kg
WTM-1R-200K 0-2000 N 0-200 kg

Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.
  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available

More details

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • Galvanic Isolation minimizes the chance for signal interference, including ground faults
  • 0-10VDC analog output
  • Provides accuracy of ±0.1%
  • Operating input power supply of 19-36 VDC, non-regulated
  • Includes excellent overload and reverse-polarity protection
  • Provides a well-regulated power supply of 10 VDC for sensor

More details

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • Scaling by means of 2 multiturn trimmers (rough / coarse)
  • Easy snap-in installation
  • 24V DC power supply with galvanic isolation

More details

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • 2 force measuring channels ( -10 to +10V ), freely scalable
  • Standard statistics in analysis
  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Real Time statistics during recording
  • Zoom, cursor and filter functions for analyzing measured data
  • Export data in ASCII format

More details


Dimensions

Dimensions Tension Sensors WTM-1R
