TELC System Low Cost Tension Monitoring System

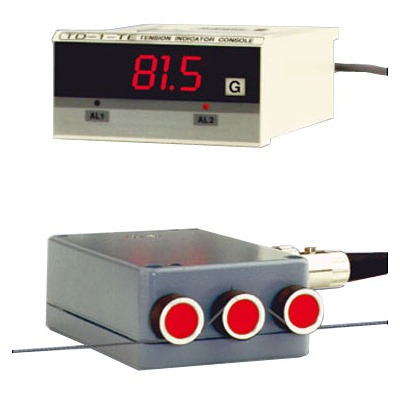

Made in GermanyTELC Sensor plus TD-1-TE Indicator Accurately measures the running line tensions of yarns, fibers, wires, cables, films & similar process materials - continuously!

The TELC System detects "out of tolerance" conditions and immediately alerts operating personnel. This enables them to take the appropriate corrective action to maintain the highest product quality.

Additionally, the TELC Tension Sensor can be installed separately, as part of a user-supplied control-loop system.

NEW RS232 Serial Output (optional)

Features

  • Precision strain gauge accuracy of ± 1.5% or better
  • User-set high & low alarm limits with relays for alerting operating personnel of "out of tolerance" conditions
  • V-grooved rollers rated for speeds up to 2000 m/min are standard or, optionally, 3500 m/min (option K) or 5000 m/min (option HS)
  • Analog output for recording and control purposes
  • Built-in electronic damping to filter out fluctuating tension readings
  • RS232 Serial output (optional) allows you to connect your sensor to our SensorView software

Tension Ranges

Model Ranges
TELC-100 0-100 g
TELC-200 0-200 g
TELC-500 0-500 g
TELC-1K 0-1 Kg
TELC-2K 0-2 Kg
TELC-5K 0-5 Kg
TELC-10K 0-10 Kg

Dimensions

Dimensions Tension Sensors TELC System


Special Purpose Models

Tapes/Films & Tows
Type RX
Uses 7, 10, 15, 20 or 30 mm wide cylindrical rollers for "strip" materials. Wider materials can be accommodated with other models.
Heavy-Duty Model
Type 24
Uses 30mm diameter hardened steel rollers for heavy wires, cable tire cord and similar process materials subjected to high impact loads

Related Products

TD-1-TE Tension Indicator


  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose
  • TD-1-TE provides regulated +15 V DC for THR Sensors (requires option "A" on Tension Sensor)
  • Optional Connecting Cable for Sensor

More details


Specifications

Accuracy
±1.5% or better
Power Required
12 - 24 V DC, regulated (20 mA)
Deflection
0.5 mm maximum
Output (Standard)
0-1 V DC
Output (Optional)
0-10 V DC, 4-20 mA, RS-232 or RS-485
(Addressable)
Analog: 0 –2 V AC, linearized, app. 500 Hz
Digital: RS 232 (9600,8,N,1)
Frequency Response
50 Hz
Outer Roller Spacing
40-200 mm, depending upon tension range, process material and application
Operating Temperature
40 to 105° F (5-40° C)
