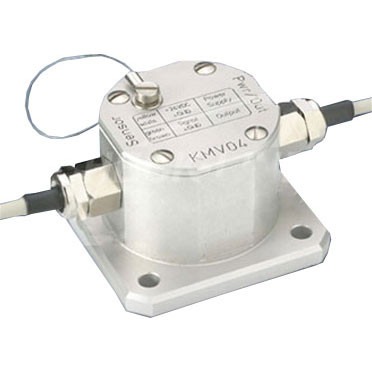

KMV-04 Cable mounted strain gauge measuring amplifier


The measuring amplifier KMV 04 is designed for universal use, esp. for tension measurement in rotating areas.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology.

The compact design of this cable mounted measuring amplifier allows the flexible use with various strain gauge based sensors, when signal conditioning must be done directly at the sensor (e.g. for the use of sliprings in rotating areas).


Features

  • Compact and robust aluminium flanged housing
  • Input power supply of 24V DC, reverse-polarity protected
  • Available with voltage output 0 to ±10V or current output 0/4 to +20mA, unipolar
  • Fixed connection between sensor and amplifier
  • Great noise immunity and service reliability for use in rough industrial operation

Dimensions

Dimensions Tension Indicators and Amplifiers KMV-04


Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.
  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available

More details

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • Scaling by means of 2 multiturn trimmers (rough / coarse)
  • Easy snap-in installation
  • 24V DC power supply with galvanic isolation

More details


Specifications

Accuracy:
± 0.1
Voltage output:
0 to ± 10 V, max. 1 mA, optional: 0 to 20 mA / 4 to 20 mA
Operating Temperature
0 - 50 ° C
Storage temperature range
- 30 to + 75 ° C
Supply Voltage:
20 to 28 V DC
Dimensions:
50 x 64 x 33 mm
Weight:
approx. 100 g
