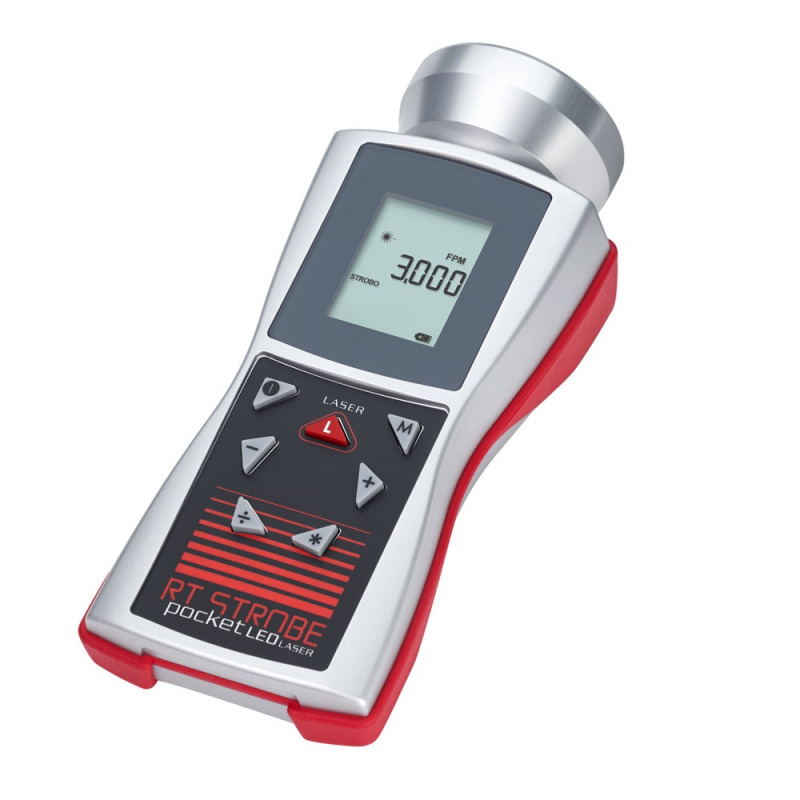

The Checkline DS-2000LED-LSR combines the observational features of an LED stroboscope with the convenience of a laser tachometer to create the ideal inspection tool. A built-in laser sensor automatically syncs the stroboscope flash rate to the RPM of the rotating object for instant speed measurement while freezing the motion.
The DS-2000LED-LSR is fitted with six super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing up to 9000 lux light output.
The DS-2000LED-LSR-OT model adds an input / output connector for syncing the strobe with an external sensor, vibration analyzer or other equipment.
The DS-2000LED-LSR comes as a complete kit:
The DS-2000LED-LSR-OT comes as a complete kit:
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000 Hz) |
| Flash Duration | Adjustable (1 usec up to 8522 usec) |
| Accuracy | ± 0.02% ± 500ns |
| Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ |
| Brightness | 9000 Lux @ 200mm |
| Protection Class | IP65 (Protection from Dust and Water Jets) |
| Display | LCD, multiple lines |
| Certification | CE (as per EU norms) |
| Flash Color | Approx. 6.500 K |
| Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries |
| Housing Material | Aluminum / ABS Heavy duty design |
| Dimensions | 191 x 82 x 60 mm |
| Weight Approx | 400g (including batteries) |
| Temperature Range | 0° - 45° C |
| Battery Life | NiMH: approx 11h at 6.000 FPM / Disposable: approx 6 h at 6.000 FPM |
| Warranty | 2 Years |
| Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |
| Trigger Input (-OT version) | 3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free |
| Trigger Output (-OT version) | Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated |
