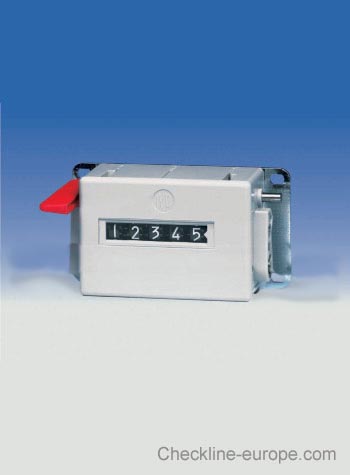

U411 IVO Mechanical Revolution Counter


Made in GermanyCounter available in various models described below.

Features
  • Max. 1000 rev/min
  • 1 revolution = 1 digit
  • Counting in direction of defined rotation (adding). Substracting in reverse direction.

Specifications
Display:5-digit, 99 999
Digit size:Approx. 7 mm high, white on black background
Reset:By pushing the socket lever, mounted on right or left side, user choice
Drive shaft:In the middle, projecting downwards
diameter: 7 mm
Housing material:Gray plastic
Base plate:Galvanized steel, 2.5 mm thick
Ambient temperature:temperature: 0 ... +60 °C
Weight:Approx. 380 gr
Counting mode:In direction of defined rotat., adding
Substracting in reverse direction
1 revolution = 1 digit
Max. speed:max. 1000 rev/min

Dimensions
Dimensions U411


Sense of rotation

Model Selector

Downloads

Buy Now
Products

Product
Price
Quantity
U411.010A01A IVO Revolutions counter
€ 276,80
U411.010A01B IVO Revolutions counter
€ 276,80
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
