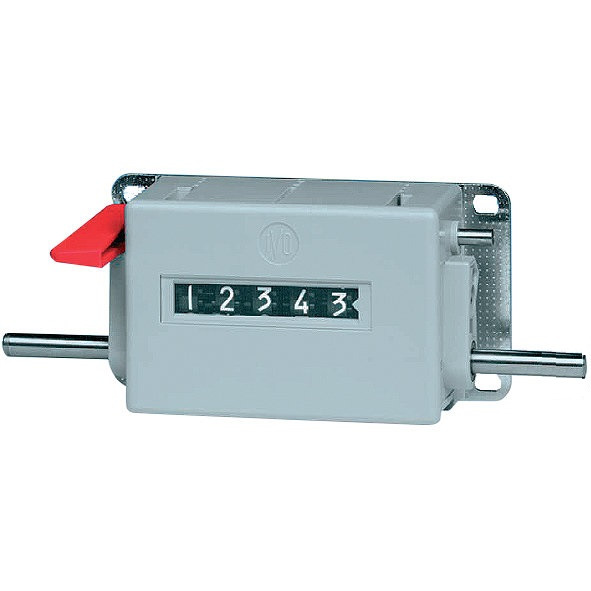

U410 IVO Mechanical Revolution Counter


Made in GermanyCounter available in various models described below.

Features

  • Counting in direction of defined rotation (adding). Substracting in reverse direction.
  • 1 revolution = 1 digit
  • Max. 3000 rev/min

Specifications

Display:
5-digit, 99 999
Digit size:
Approx. 7 mm high, white on black background
Reset:
By pushing the socket lever, mounted on right or left side, user choice
Drive shaft:
Projecting on both sides, dia. 7 mm
Housing material:
Gray plastic
Base plate:
Galvanized steel, 2.5 mm thick
Ambient temperature:
temperature: 0 ... +60 °C
Weight:
Approx. 380 gr
Counting mode:
In direction of defined rotat., adding
Substracting in reverse direction
1 revolution = 1 digit
Max. speed:
Max. 3000 rev./min.

Dimensions

Dimensions Rotation Counters U410


Sense of rotation


Model Selector


Downloads


Buy Now

Products


Product name
Price
Quantity
U410.010A01A IVO Revolutions counter
€ 145,00

U410.010A01B IVO Revolutions counter
€ 145,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request

If the desired model is not shown in the list of prices, price is on request
