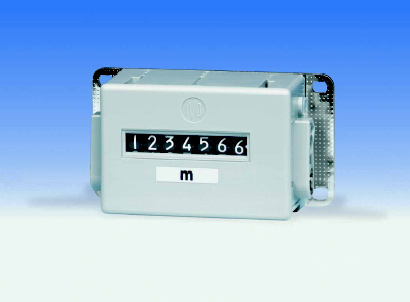

U401 IVO Mechanical Revolution Counter with Key Reset


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of defined rotation (adding). Substracting in reverse direction.
  • 1 revolution = 1 digit
  • Drive shaft projecting downwards in the middle
  • Max. 1000 rev/min
  • With removable reset key

Dimensions
Dimensions U401


Sense of rotation

Model Selector

Downloads

Specifications
Display:7-digit, 9 999 999
Digit size:Approx. 7 mm high, white on black background
Reset:Turn removable key on either side to reset
Drive shaft:In the middle, projecting downwards, Ø 7 mm
Housing material:Gray plastic
Base plate:Galvanized steel
Ambient temperature:0...+60 °C
Weight:Approx. 350 g
Counting mode:In sense of rotation to be defined, adding. In reversed direction units digit counts down to zero, then idle run. 1 revolution = 1 digit
Max. Speed:Max. 1000 rev./min.

Buy Now
Product

Product
Price
Quantity
U401.010A01A IVO Rotation Counter
€ 223,90
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
>If the desired model is not shown in the list of prices, price is on request
