U126 Revolution counters with turn reset

Call us for more information
+31 (0)53 8200245
Request Information / Quotation
Show similar products
View pricing

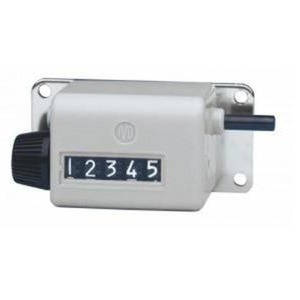

U126 Revolution counters with turn reset


Made in GermanyRevolution counter U126
  • Revolution counter
  • Adding
  • Display 5-digits
  • Manual reset by knurled knob

Counter available in various models described below.

(Difference with U127 is the mounting plate)


Features
  • Counting in sense of rotation to be defined (adding). Subtracting in reversed direction.
  • Reset by turning the fixed knurled knob
  • Max. Speed 2000 rev./min.

Dimensions
Dimensions-U126


Sense of rotation
Right turn to reset
Away from user I		 Right turn to reset
Towards user II
Left turn to reset
Away from user I		 Left turn to reset
Towards user II

Downloads
Datasheet U126

Specifications
Display:5-digit, 99 999
Digit size:Approx. 4.5 mm high, white on black background
Reset:By turning the fixed knurled knob
Drive shaft:Right or left, Ø 4 mm
Housing material:Gray plastic
Base plate:Steel - 2 mm thick, galvanized
Weight:Approx. 90 g
Counting mode:In sense of rotation to be defined, adding. Subtracting in reversed direction.
1 revolution = 1 digit
Dimensions W x H x L40x29x27.5mm
Mounting plate dimensions60x29mm
Mounting typeBase plate, 4 mounting holes

Buy Now
Products

Product
Price
Quantity
U126.010A01G IVO Mechanical Revolution Counter with Turn Reset
€ 100,00
U126.010A01H IVO Mechanical Revolution Counter with Turn Reset
€ 100,00
U126.020A02G IVO Mechanical Revolution Counter with Turn Reset
€ 100,00
U126.020A02H IVO Mechanical Revolution Counter with Turn Reset
€ 100,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
