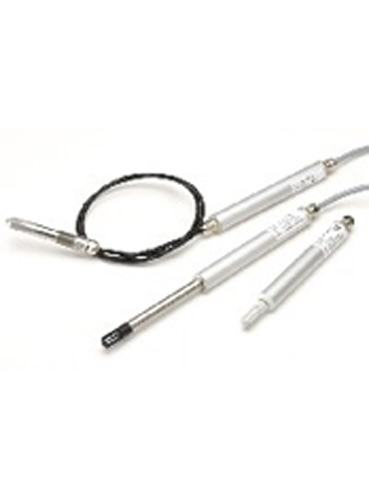

RH-SENSORS Air humidity and temperature sensors with analog output


Pre-calibrated air humidity and temperature sensors with linear analog output

Relative humidity probes for use in laboratory and climate control environments, measure building or room humidity and temperature continuously.

Typical industries include drying, wood processing, (animal) food, agriculture, printing and paper, biotechnology and the pharmaceutical industry.


Features
  • Pre-calibrated air humidity and temperature sensors
  • Linear analog output signal for connection to PLC (or PC)
  • High-quality industrial design
  • For constant monitoring of air temperature and/or humidity

Available Sensors


T-60 - Precision air temperature sensor




- Temperature range: -20 to 60°C,
- Accuracy: ±0.2°C (at 25°C),
- Output range: 4 to 20mA,
- Scaling: 0.2mA/°C,
- Power supply: 24VDC (15-29VDC).
- Temperature limits: -20°C to 60°C,







T-85 - Stainless steel temperature sensor






- Temperature range: -20 to 85°C,
- Accuracy: ±0.1°C (at 25°C),
- Output range: 4 to 20mA,
- Scaling: 0.1mA/°C,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -40°C to 120°C,
- Includes wall fixture & clamp.






LF-85 - Relative humidity sensor






- Humidity range: 0 to 90%,
- Accuracy: ±2% (at 25°C),
- Output range: 0 to 10V,
- Scaling: 0.1V/%,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -20°C to 85°C,
- Includes wall fixture & clamp.






LF-T-40 - Humidity & temperature sensor






- Humidity range: 20 to 90%,
- Accuracy: ±3% (at 25°C),
- Humidity output range: 0 to 1V,
- Humidity scaling: 0.01V/%,
- Temperature range: 0 to 40°C,
- Accuracy: ±0.5°C (at 25°C),
- Temperature output range: 0 to 10V,
- Temperature scaling: 0.01V/°C,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -40°C to 60°C,
- Includes wall fixture & clamp.



LF-T-60 - Humidity & temperature sensor with 5m cable






- Humidity range: 0 to 90%,
- Accuracy: ±2% (at 25°C),
- Humidity output range: 4 to 20mA,
- Humidity scaling: 0.16mA/%,
- Temperature range: -20 to 60°C,
- Accuracy: ±0.5°C (at 25°C),
- Temp. output range: 4 to 20mA,
- Temperature scaling: 0.2mA/°C,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -20°C to 60°C,
- Includes wall fixture & clamp.



LF-T-85 - Humidity & temperature sensor with 50cm long sensor






- Humidity range: 0 to 90%,
- Accuracy: ±2% (at 25°C),
- Humidity output range: 4 to 20mA,
- Humidity scaling: 0.16mA/%,
- Temperature range: -20 to 60°C,
- Accuracy: ±0.5°C (at 25°C),
- Temp. output range: 4 to 20mA,
- Temperature scaling: 0.1mA/°C,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -40°C to 85°C,
- Includes wall fixture & sensor cap.



LF-T-140 - Humidity & temperature sensor with 75cm long sensor




- Humidity range: 0 to 90%,
- Accuracy: ±2% (at 25°C),
- Humidity output range: 4 to 20mA,
- Humidity scaling: 0.16mA/%,
- Temperature range: -20 to 60°C,
- Accuracy: ±0.5°C (at 25°C),
- Temp. output range: 4 to 20mA,
- Temperature scaling: 0.08mA/°C,
- Power supply: 24VDC (15-29VDC),
- Temperature limits: -20°C to 140°C,
- Includes wall fixture & sensor cap.


Buy Now
Products

Product name
Price
Quantity
T-60 - Precision air temperature sensor
€ 290,00
T-85 - Stainless steel temperature sensor
€ 290,00
LF-85 - Relative humidity sensor
€ 380,00
LF-T-60 - Humidity & temperature sensor with 5m connection cable
€ 420,00
LF-TD-90 - Humidity & temperature sensor with 50cm long sensor
€ 460,00
LF-TD-120 - LF-T120 - Humidity and temperature transmitter with 0.5 meter sensor tube
€ 730,00
LF-T-140 - Humidity & temperature sensor with 75cm long sensor
€ 795,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
