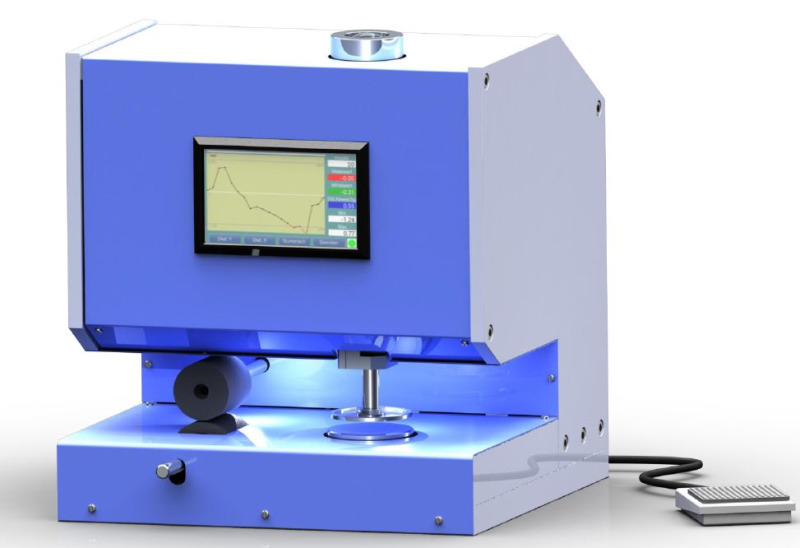

D-2020 Motorized Precision Material Thickness Gauge with Automatic Feed


Made in GermanyThe D-2020 Precision Material Thickness Gauge with Automatic Feed has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards for:
Textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

Fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

Geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

Paper according to DIN EN ISO 53105 (measuring face 2 cm²/pressure 100 kPa)

For other standards see the Available Models below.

The D-2020 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

The D-2020 has data outputs for the digital processing of the measurement results or for the transmission to a printer.


Features
  • Graphic display for readings and statistics
  • 2 selectable modes:
    "AUTO" - executing a series of measurements
    "MAN" - executing a single measurement
  • Time saving during series measuring by ideal adjustment to the measuring problem
  • Interface:
    USB for data transmission
    RS 232 for printer
  • Touchscreen Interface
  • Adjustable, automatic feed by series of measurements (travel: 10 - 100 mm, speed: slow or fast)
  • Statistical analysis of series of measurement (Number of readings, average value, standard deviation)
  • Additional weights for different surface pressure values are available. INQUIRE
  • Optionally with pedal
  • Always up-to-date and simultaneous display of the measurement value, the measurement cycle, the average value and the standard deviation
  • Gauging depth (centre of the stamp) 110 mm
  • Motor-driven calliper movement with steady lowering speed (standard 2.5 mm/s)
  • Resolution 0.01 mm - standard, 0.001 mm - optional
    (0.001 mm is standard for D-2020-P, D-2020-F)

Available Models
Model Standard Application Feeler dia. (mm) Feeler area (cm²) Pressure
D2020-T DIN EN ISO 5084 Textiles 50.42 20 0.1 kPa and 1 kPa
D-2020-V DIN EN ISO 9073-2 Standard fleece 56.42 25 0.1 kPa and 0.5 kPa
D-2020-G1 DIN EN ISO 964-1 Geomaterials 56.42 25 2 kPa
D-2020-NW DIN EN ISO 53855 Non-woven
textiles
56.42
35.68
25
10
0.5 kPa and 1 kPa
5 kPa
D-2020-P* DIN EN ISO 53105 Paper 16 2 100 kPa
D-2020-HY DIN EN ISO 54540 Toilet tissue 56.42 25 2 kPa
D-2020-L1 DIN EN ISO 53326
(out of date)
Leather 10 0.785 50 kPa
D-2020-L2 DIN EN ISO 2589 Leather 10 0.785 49.1 kPa
D-2020-Gi Rubber 35.68 10 5 kPa
Feeler Calotte
D-2020-F* DIN 53370 Foils R 30 mm 0.5 N
(*0.001 mm is standard for D-2020-P, D-2020-F)

Specifications
Measuring range
0 - 10 mm, (25 mm optional, Code E)
Resolution
0.001 mm
Accuracy
± 0.002 mm
Depth of jaw
160 mm
Measuring system
Capazitive -> Sylvac
Display
Graphic display Touchscreen
Measuring unit
mm or inch (switchable)
Stroke in mm
Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Feed
10, 20, 25, 40, 50, 60, 80 and 100 mm
Residence time
1 - 60 seconds
Number of measurements
Up to 50 per test series
Feeler shape and surface pressure
According international standards DIN, EN and ISO
Output signal
RS 232 for printer and USB for PC
Temperature range
10 - 45 °C
Air humidity
Max. 85 % r.H
Dimensions
300 x 300 x 320 mm (LxWxH)
Weight, net (gross)
31.5 kg

Options
Code RHigher resolution 0.001 instead of 0.01 mm
(0.001 mm is standard for D-2020-P, D-2020-F)
Code EExtended measuring range 0 - 25 mm
Code E2Extended measuring range 0 - 50 mm
Code S Software & Cable
DKD-CalCalibration report from a DKD authorized laboratory


Special models can be requisted!
