MR SERIES 5 IVO Measuring wheels (50 cm circumference)


Made in GermanyWhen selecting a measuring wheel, consider the type of goods to be measured before you choose the surface properties or the lining of the measuring wheel. The circumference of the measuring wheel should be chosen according to the available space and size of the counter. The smaller the measuring wheel, the more force will need to be exerted on its circumference and the greater the probability of drift leading to false results. The width of the measuring wheel also influences the measuring result.

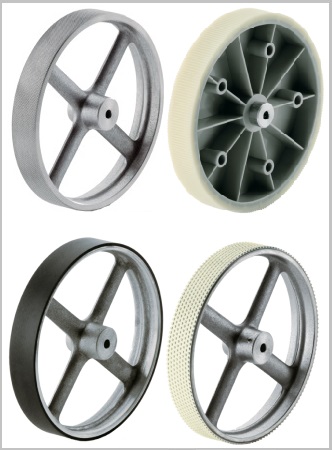

IVO measuring wheel


Features
  • 0.5m circumfence
  • 5 different lining versions:
    • Aluminium, Cross knurl
    • Smooth Vulkollan
    • Knopped rubber
    • Smooth Hytrel
    • Grooved Hytrel
  • 3 bore size diameters; 7mm, 10mm and 12mm.

Measuring accuracy

The measuring accuracy of a meter counter with measuring wheel depends on the following features:


  • Type of products to be measured
  • Angle of contact
  • Torque of counter or encoder
  • Feeding speed of products
  • Tensile stress of products to be measured
  • Surface roughness
  • Contact pressure of products to be measured against measuring wheel
  • Suppleness of products to be measured
  • Diametrical tolerance of measuring wheel
  • Suitable products to be measured
Recommended liming Suitable material
MR592 - Grooved Hytrel Plastic, Painted material, Paper, Cardboard, Wood, Metal, Textile
MR542 - Smooth Hytrel Plastic, Painted material, Paper, Cardboard, Wood, Metal, Textile
MR512 - Cross knurl Cardboard, Wood, (Textile)
MR562 - Knopped rubber Textile
MR552 - Smooth Vulkollan Plastic, Painted material, Paper, Cardboard, Wood, Metal, Wire

Dimensions
Dimensions-MR SERIES 5


Downloads

Buy Now
Products

Product
Price
Quantity
130993
MR512.07A Aluminium Measuring Wheel 0.5 meter
€ 151,00
130111
MR512.10A Aluminium Measuring Wheel 0.5 meter
€ 151,00
125966
MR542.07D Measuring wheel Smooth Hytrel
€ 127,00
130294
MR542.10D Measuring wheel 10 shaft diameter
€ 118,50
130994
MR552.07A Measuring wheel Vulkollan - 7 mm bore diameter
€ 184,50
130905
MR552.10A Measuring wheel Vulkolan
€ 221,50
134024
MR562.06A Measuring (AL) Wheel 6 mm shaft diameter nopped rubber
€ 165,00
130412
MR562.07A Measuring (AL) Wheel 7 mm shaft diameter nopped
€ 165,00
130329
MR562.10A Measuring (AL) Wheel 10 mm shaft diameter nopped rubber
€ 165,00
130364
MR592.07D Measuring wheel 7mm shaft diameter ribbed
€ 176,50
130330
MR592.10D Measuring Wheel 10mm shaft diameter ribbed
€ 118,50
135149
MR592.12D Measuring Wheel 12 mm shaft diameter ribbed
€ 118,50
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
