Leica Disto S910 Pro Pack - Including tripod, adaptor and target plate


The Leica DISTO S910 Pro Pack is the complete professional system for exact targeting, precise measurements of point data and creating drawings. It consists of the Leica DISTO S910 laser distance meter(LDM) , the Leica FTA360-S tripod adaptor, the GZM3 target plate and the Leica TRI 70 tripod. The Pro Pack, including its accessories, comes in a robust carrying case.

FTA 360-S
As precise targeting of the laser dot can be quite difficult from long distances, the FTA 360-S tripod adaptor has been developed. Simply apply the adaptor to the tripod and the LDM, and it's ready to be used. Point and shoot the laser to approach the spot, then by tweaking the knobs on the adaptor adjust the location of the laser dot by millimeters.

TRI 70
The tripod creates a steady base for the LDM, to keep it still. The TRI 70 can be height-adjusted, ranging from 0.40 to 1.15 m.

GZM3
The target plate is design in orde to improve the workflow when measuring lengths of for example countertops. By applying the target plate to the corner of a counter top, the measurement will consume less of your time as it gets visually easier to perform.


Features
  • TRI 70 Tripod
  • FTA 360-S Adaptoer
  • GZM3 Target Plate
  • Disto S910 LDM with SmartBase
  • Integrated camera
  • Pointfinder with 4x zoom
  • 360° Tilt sensor
  • Touch screen
  • Smart Horizontal Mode
  • Height tracking
  • P2P-measurement
  • Smart Angle measurement
  • Smart Area measurement
  • DXF data capture
  • Bluetooth / WLAN interface
  • ISO Certificate

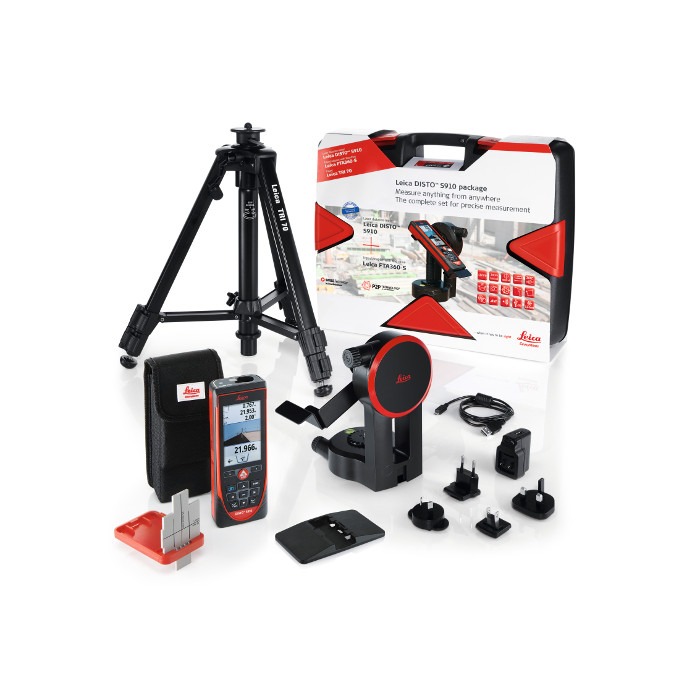

Complete Kit

The Leica DISTO S910 Pro Pack is delivered as a complete kit including the following items:​

  • S910 LDM
  • SmartBase Extension
  • Holster
  • USB charger with 4 plugs
  • Target Plate
  • Tripod
  • Adaptor
  • Leica Carrying Case


Specifications
Accuracy± 1.0 mm
Measuring Range0.05 - 300 m
SmartBase Vertical Range-40° to 80°
SmartBase Vertical Sensor Tolerance+/- 0.1°
SmartBase Horizontal Range360°
SmartBase Horizontal Sensor Tolerance+/- 0.1°
Measuring Unitsm, ft, in
X-Range TechnologyYes
Pointfinder with 4x zoomYes
Overview CameraYes
File Format.jpg / .dxf
MemoryLast 50 displays
Windows SoftwareDISTO Transfer with AutoCAD plugin
Free AppiOS / Android
Data Interface Bluetooth V4.0 Smart / USB / WLAN
Measurements per set of batteriesUp to 4,000
Storage Temp. Range-25 to 60°C
Operating Temp. Range-10 to 50°C
Charging Temp. Range-10 to 40°C
BatteriesLi-ion batteries
Protection ClassIP 54 - splash water / dust proof
Dimensions LDM164 x 61 x 32 mm
