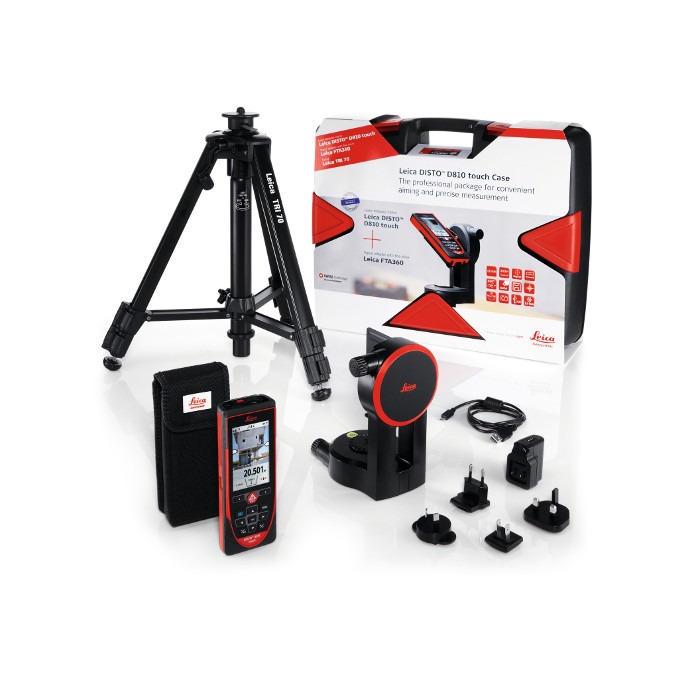

Disto D810 Touch Pro Pack - Including tripod, fine tune adaptor and hard case


The Leica DISTO D810 Touch Pro Pack is the complete set to optimize the use of the D810 laser distance meter. The Pro Pack includes the Leica DISTO D810 Touch, the Leica FTA360 Fine Tune adaptor and the Leica TRI 70 tripod. The Pro Pack, including its accessories, comes in a Leica hard case.

FTA 360 Fine Tune Adaptor
Apply the adaptor to the tripod and the LDM, and it's ready to be used. After shooting the laser dot, adjust its location by togglying the vertical and horizontal knobs of the FTA 360.

TRI 70
The tripod creates a steady base for the LDM, to keep it still. The TRI 70 can be height-adjusted, ranging from 0.40 to 1.15 m.


Features

  • TRI 70 Tripod
  • FTA 360 Fine Tune Adaptor
  • Disto D810 Touch
  • Integrated camera
  • Pointfinder with 4x zoom
  • 360° tilt sensor
  • Smart Horizontal Mode
  • Height tracking
  • Height Profile tracking
  • Sloped object measurement
  • Intelligent end-piece
  • Bluetooth Smart (4.0)

Complete Kit

The Leica DISTO D810 Pro Pack is delivered as a complete kit including the following items:​

  • D810 Touch LDM
  • Holster
  • USB charger with 4 plugs
  • Tripod
  • Adaptor
  • Leica Carrying Case


Specifications

Accuracy
± 1.0 mm
Measuring Range
Up to 200 mm
Measuring Units
m, ft, in
Power Range Technology
Yes
Pointfinder with 4x zoom
Yes
Overview Camera
Yes
Photograph file format
.jpg
Memory
Last 30 displays
Windows Software
DISTO Transfer with AutoCAD plugin
Free software for Windows
Yes
Free App
iOS / Android
Data Interface
Bluetooth V4.0 Smart
Measurements per set of batteries
Up to 4,000
Multifunctional end-piece
Automatic Recognition
Batteries
Li-ion rechargeable
Protection Class
IP 54 - splash water / dust proof
Dimensions LDM
164 x 61 x 31 mm
Weight with batteries
238 g
