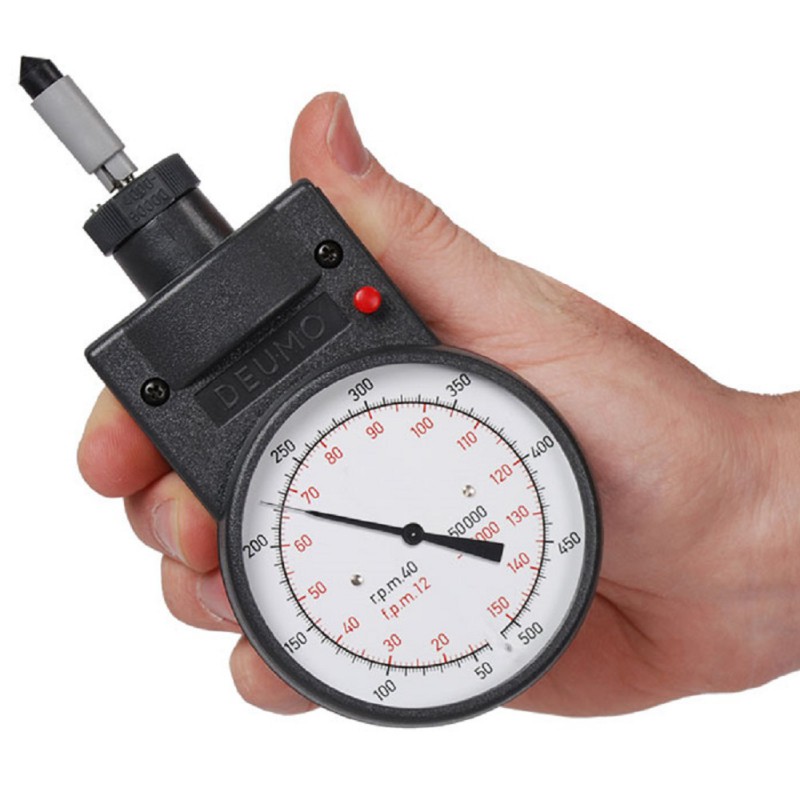

MT200 - MT500 Mechanical Hand Held Tachometer


New in the MT-series are the MT-200 and MT-500 mechanical tachometers from Check-Line. The tachometers both accurately measure rotational and surface speed.

The MT-200 & MT-500's rugged construction and portability make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

This analog tachometer does not require batteries which makes it a perfect tool for field service personnel.

MT-200 = Deumo S
MT-500 = Deumo 2


Features
  • Measures speeds from as low as 16 rpm up to 50,000 rpm
  • Accuracy of ± 0.5%
  • Rugged lightweight design for easy operation
  • Measures Feet Per Minute (FPM) with included surface speed wheel
  • CE Certified
  • Principle of operation: Eddy-Current Tachometer
  • RED-colored hold button permits user to retain last reading until it can be conveniently viewed. It is released to clear reading

Specifications
Measuring Ranges:MT-200
RPM: 16-200 / 160-2,000 / 1,600-20,000
FPM: 4.8-60 / 48-600 / 480-6,000
MT-500
RPM: 40-500 / 400-5,000 / 4,000-50,000
FPM: 12-150 / 120-1,500 / 1,200-15,000
Accuracy:±0.5%
Dimensions:3.3 x 6.1 x 1.8" (85 x 155 x 45 mm)
Weight:0.3 kg
Housing Material:ABS Plastic
Warranty:1 year

Complete Kit
The MT-200/MT-500 is supplied as a complete kit that includes five (5) cone tips, funnel tip and surface speed wheel in a hard-plastic carrying case.

Accessories
MT Accessories
  1. MT-HOLD-CONE - Spare Cone Tip
  2. MT-WHEEL - Spare Surface Speed Wheel
  3. MT-FOLLOWER - Spare Rubber Follower (funnel tip)
  4. MT-LG-CONE - Spare Large Cone Tip
  5. MT-EXT - Spare Shaft Extension



Buy Now
Products

Product name
Price
Quantity
MT-200 Mechanical Tachometer
€ 395,00
MT-500 Mechanical Tachometer
€ 395,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
