RX-ORF O-Ring Fixturing Set


Made in the USARange: 1/16" to 1/4"

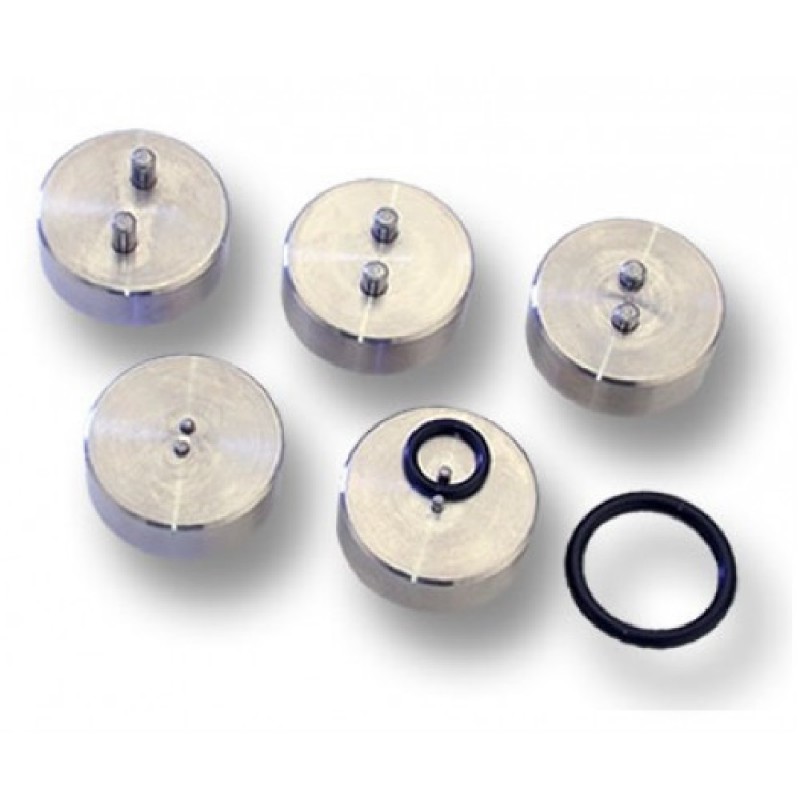

O-Rings have always been tough to check using an ordinary A-scale durometer, but now Checkline Europe offers the O-Ring Fixturing set (RX-ORF) which enables the user to check o-rings with the combination of an A-scale RX Durometer and a operating stand. The set consists of five fixtures and one set plug (for setting operating stand travel). The standard O.R.F. set can be used to test O-Rings with cross sections of 1/16", 3/32", 1/8", 3/16" and 1/4". Custom and metric o-ring fixtures can be special ordered.


Features
  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
  • Stainless steel construction
  • Made in the USA

Related Products

RX-OS-2 Durometer Test Stand


  • Eliminates operator error in the A, B, and O scales
  • Stainless steel and anodized aluminum construction
  • Compact size - 33 cm high x 15 cm wide
  • Total Weight approximately 4 Kg.

More details

RX-OS-2 Durometer Test Stand

RX-1700 Precision Durometer With Memory


  • Reads maximum and creep
  • Conforms to ASTM D-2240

More details

RX-1700 Precision Durometer With Memory

Buy Now
Product

Product
Price
Quantity
130154
RX-ORF O-ring Fixture Set
€ 523,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
