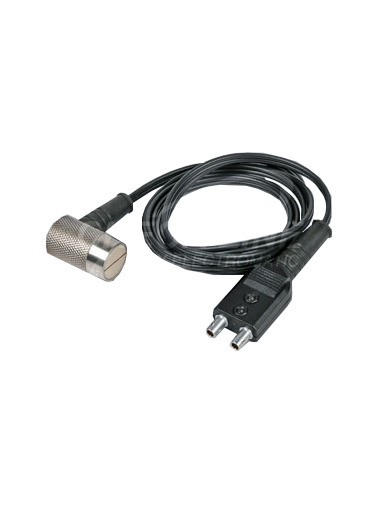

The 3,5 MHz T-104-9700 transducer is equipped with a 1/2" crystal diameter and a potted connector with side entry. The transducer can be applied for the testing of cast iron, plastics (polypropylene, polyethylene, etc.) and thin fiberglass.
The High Damped transducer enables through paint/coating measurements to be performed with an increased resolution.
Each mode corresponds with a different measurement range shown below:
Pulse - Echo mode: 0.100" - 4.0" range
Echo - Echo mode (MX, ZX): 0.125" - 4.0" range, up to 0.075" of Coating
Echo - Echo mode (MVX, CMX): Adjustable - Large Range
