DTS Series Digital Tension Meter for Yarn and Wire

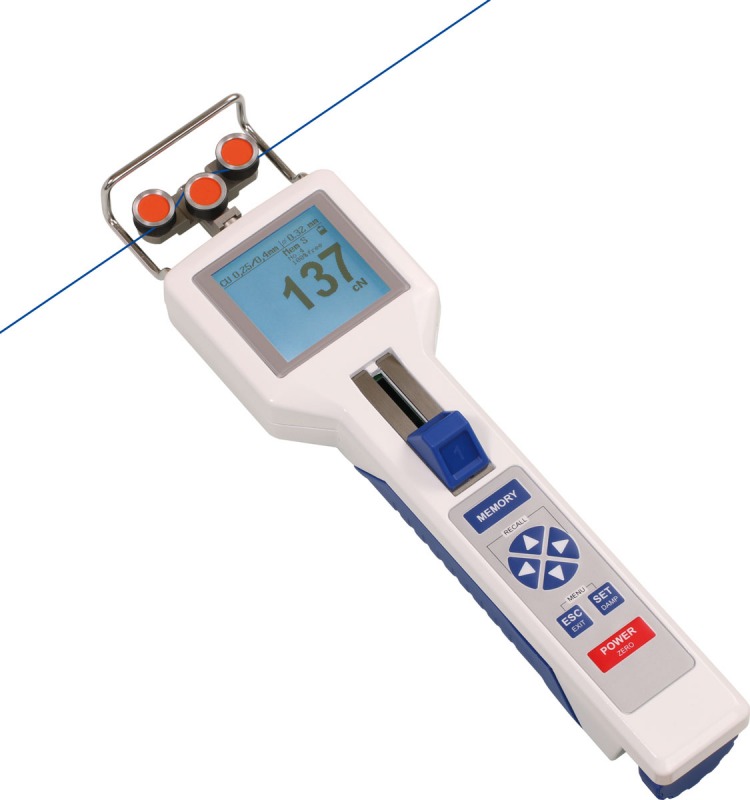

Hand-held digital tension meter with colour TFT display for yarns, fibres and wires

The DTS digital tension meter measures the running tension of yarns, fibres, wires and similar flexible materials in textile production, wire processing and quality control. The hand-held instrument is available in 12 measuring ranges, with different measuring-head widths to suit the material and application.

The DTS has a colour TFT display with three selectable views: a numeric reading, a numeric reading with bar graph, and an X-Y diagram showing tension over time. The display can be fixed at 0°, 90°, 180° or 270°, or set to rotate automatically. MIN and MAX readings can be displayed over an adjustable time window of 2–60 seconds.

For repeatable measurements, the DTS provides automatic zero adjustment when the measuring position changes, programmable MIN/MAX alarms and adjustable electronic damping. Models DTS-500 to DTS-30K also include a material thickness compensator. One factory material calibration and up to four customer calibrations are supported for measurements on different materials.

The DTS can record a measurement series and store its statistical summary, including the last reading, average, minimum, maximum, standard deviation and number of measurements. One summary is stored at a time; saving another replaces the previous result.

For extended data logging, multiple stored measurement series or USB transfer of measurement data to a PC, see the DTX Digital Tension Meter.

Request price >>

Hand-held tension measurement for running yarns, fibres and wires
12 measuring ranges with measuring heads suited to different material sizes
Colour TFT display with numeric, bar graph and X-Y time–tension views
Automatic screen rotation or selectable fixed orientations in 90° steps
MIN/MAX readings over an adjustable 2–60 second time window
Programmable MIN/MAX alarms and adjustable electronic damping
Automatic zero adjustment when the measuring position changes
One factory calibration and up to four customer material calibrations
Material thickness compensation on DTS-500 to DTS-30K
Records one measurement series and stores its statistical summary
Settings can be password protected
12-month warranty

DTS digital tension meter with built-in rechargeable LiPo battery
USB AC adapter with four plug adapters (EU/US/UK/AUS-NZ)
USB cable
Certificate of Compliance with the order, Type 2.1 according to EN 10204
Instruction manual
Carrying case

Tension Ranges

Model	Measuring Range	Head Width*	Textile Applications	Copper Wire Applications
DTS-200	1–200.0 cN	66 mm	Up to 200 tex	Up to 0.15 mm Ø
DTS-500	1–500.0 cN	66 mm	Up to 500 tex	0.05–0.25 mm Ø
DTS-1000	10–1000 cN	66 mm	Up to 1000 tex	0.10–0.40 mm Ø
DTS-2000	20–2000 cN	66 mm	Up to 2000 tex	0.30–0.60 mm Ø
DTS-2500	25–2500 cN	116 mm	Up to 2500 tex	0.30–0.70 mm Ø
DTS-4000	40–4000 cN	66 mm	Up to 4000 tex	0.35–0.90 mm Ø
DTS-5000	50–5000 cN	116 mm	Up to 5000 tex	0.40–1.00 mm Ø
DTS-10K	0.1–10.00 daN	116 mm	Up to 10000 tex	0.70–1.40 mm Ø
DTS-20K	0.2–20.00 daN	166 mm	Up to 20000 tex	1.00–2.00 mm Ø
DTS-30K	0.3–30.00 daN	216 mm	Up to 30000 tex	1.20–2.50 mm Ø
DTS-50K	0.5–50.00 daN	216 mm	Up to 50000 tex	1.40–3.00 mm Ø
DTS-60K-ASYB	0.6–60.00 daN	270 mm	Up to 60000 tex	1.80–3.50 mm Ø
* Filament guide width or distance between the outer guide rollers, depending on the model. Application values are manufacturer guidance. Material thickness compensation is fitted to DTS-500 to DTS-30K (not DTS-200, DTS-50K or DTS-60K-ASYB). Special measuring ranges and modified measuring-head dimensions are available on request.

Memory and Rollers

Measurement Memory and Display Functions

The DTS provides three live display modes and a single-series statistical memory. It does not offer the five recording modes or extended data storage of the DTX.

Function	Description
Numeric Display	Shows the current tension reading numerically, with relevant measurement information and alarm indications.
Numeric with Bar Graph	Shows the tension reading numerically and as a bar graph, with MIN/MAX readings within the selected time window.
X-Y Time–Tension Diagram	Graphical display of tension against time, with an adjustable time axis of 0.5–60 seconds.
MIN/MAX Display	Displays minimum and maximum readings within an adjustable time window of 2–60 seconds.
Measurement Recording	Starts and stops recording a measurement series using the MEMORY key.
Statistical Memory	Stores the last reading, average, minimum, maximum, standard deviation, number of readings, material name and measurement date/time.
Memory Capacity	One statistical measurement-series summary. Saving a new summary overwrites the previous one.
Memory Review	Stored statistical results can be displayed on the instrument.

Guide Roller Options

The DTS can be configured with different guide rollers to suit material type, surface requirements and running speed. Standard rollers are made from hard-coated aluminium; alternative rollers are specified when ordering the instrument.

Roller Code	Maximum Line Speed	Roller Material / Design
Standard	2000 m/min	Hard-coated aluminium, V-groove
Code K	3500 m/min	Hard-coated aluminium, V-groove
Code H	5000 m/min	Plasma-coated aluminium, V-groove
Code T	1000 m/min	Black POM plastic, V-groove
Code W	1000 m/min	Nickel-plated steel, V-groove
Code ST	1000 m/min	Hardened steel, V-groove
Code B	1000 m/min	Tempered steel for tyre cord, V-groove
Code CE2	1000 m/min	Ceramic-coated aluminium, V-groove
Code ASY	1000 m/min	Hard-coated aluminium, asymmetrical groove
Code ASYB	1000 m/min	Tempered steel for tyre cord, asymmetrical groove
Code U	2000 m/min	Hard-coated aluminium, U-groove

Codes ASY, ASYB and U are not available for DTS-200. The DTS-60K-ASYB is supplied with the ASYB roller configuration.

Options

Code MH — Stationary mounting	Factory-fitted M5 mounting threads (max. thread depth 5 mm, hole spacing 23 mm) with removable 10 mm distance bolts for stationary use. Must be specified when ordering; only factory-made mounting holes are permitted.

Code MH - Online Mounting

DTS Data Sheet

Measuring Ranges	12 model-dependent ranges, from DTS-200 (1–200.0 cN) to DTS-60K-ASYB (0.6–60.00 daN) See Tension Ranges for the individual models
Accuracy	PA calibration material, 5–100% of full scale: ±0.5% of full scale ±1 digit Remaining measuring range and other calibration materials: ±3% of full scale ±1 digit
Factory Calibration	According to the SCHMIDT factory procedure; model-specific calibration materials
Material Calibration Memory	1 factory material calibration and 4 customer calibrations
Measuring Units	Tension: cN, daN, g, kg, N, lb (available units depend on the model's measuring range) Material thickness: mm, inch
Overrange	Approx. 10% of full scale, without accuracy guarantee
Overload Protection	100% of full scale
Measuring Principle	Strain gauge bridge
Measuring Roller Deflection	Max. 0.2 mm
Signal Processing	Digital, 16-bit A/D converter
Measuring Frequency	Max. 1 kHz (1,000 measurements/s); internal sampling 8 kHz
Display	Colour TFT display: numeric; numeric with bar graph; X-Y time–tension diagram
Display Orientation	Fixed at 0°, 90°, 180° or 270°, or automatic rotation
Display Update Rate	2 updates per second
MIN/MAX Time Window	Adjustable from 2 to 60 seconds
X-Y Diagram Time Axis	Adjustable from 0.5 to 60 seconds
Measurement Memory	One measurement-series summary: last reading, average, minimum, maximum, standard deviation, number of readings, material name and date/time; saving a new series overwrites the previous summary
USB	Charging (also from a PC)
Electronic Damping	Adjustable averaging, 9 levels
Calibration Adjustment	−10% to +10% in 1% increments
Material Thickness Compensation	Max. 2.5 mm; fitted to DTS-500 to DTS-30K
Automatic Zero Adjustment	Automatic when the measuring position changes; manual zero adjustment also available
MIN/MAX Alarms	Programmable upper and lower limits with display indication
Password Protection	Settings can be protected with a 4-digit password
Automatic Power-Off	After approx. 3 minutes of non-use, when enabled
Temperature Coefficient	Gain: less than ±0.01% of full scale/°C at 25 °C Zero point: better than ±0.03% of full scale/°C at 25 °C
Operating Temperature	10–45 °C
Relative Humidity	Max. 85% RH
Power Supply	Rechargeable LiPo battery; up to 30 hours of continuous use Charging time approx. 3.5 hours USB AC adapter: 100–240 V AC, with EU/US/UK/AUS-NZ plug adapters
Housing Material	Die-cast aluminium
Housing Dimensions	265 × 78.5 × 46 mm (L × W × H)
Weight	Up to DTS-50K: approx. 875 g net (1,550 g gross) DTS-60K-ASYB: approx. 1,040 g net (2,700 g gross)
Included Certificate	Certificate of Compliance with the order, Type 2.1 according to EN 10204
Warranty	12 months
