RG Force Sensor Module


The RG Force Sensor Module is no longer available and has been replaced by R03 Series.
Click here to see the R03 Series.

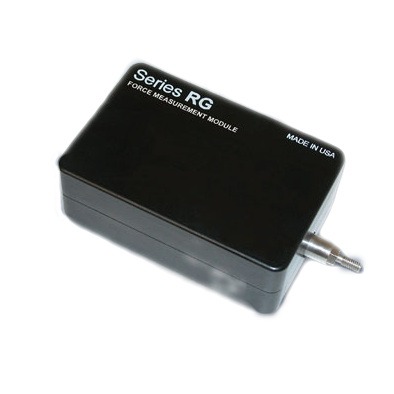

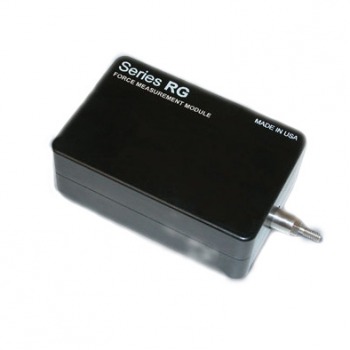

The RG smart load cell is a plug-and-play force measurement building block designed for integration within assembly systems, weighing systems, and other process automation and testing automation applications. All functions are controlled by commands sent from a PC or PLC via its RS-232 connector. The RG's ASCII command library allows for peak force recall, set points, data averaging, data filtering, calibration, and many other functions. A rugged aluminum housing makes the RG durable enough to withstand the rigors of manufacturing environments. Capacities are available from 2 lb to 200 lb (10 N to 1000 N).


Features
  • Measures tension and compression forces
  • RS-232 and Mitutoyo outputs
  • Averaging mode for average readings over time
  • Selectable units of measurement
  • General purpose I/O for external device control
  • Peak memory for tensile and compressive forces
  • Dedicated force limit outputs for direct hardware control (relays, etc)
  • GCL-Gauge Control Language for full computer control
  • External trigger for contact or switch testing and data capture
  • Programmable analog and digital filters
  • Programmable default configuration
  • Power via 9 - 12 VDC
  • Optional cable with bare leads for integration with PC/PLC and external power supply

Tension Ranges
ModelRanges Resolution
RG2 2 lb
1 kgF
10 N
0.002 lb
0.001 kgF
0.01 N

RG5 5 lb
2.5 kgF
25 N
0.005 lb
0.002 kgF
0.02 N

RG10 10 lb
5 kgF
50 N
0.01 lb
0.005 kgF
0.05 N

RG20 20 lb
10 kgF
100 N
0.02 lb
0.01 kgF
0.1 N

RG50 50 lb
25 kgF
250 N
0.05 lb
0.02 kgF
0.2 N

RG100 100 lb
50 kgF
500 N
0.01 lb
0.05 kgF
0.5 N

RG200 200 lb
100 kgF
1000 N
0.02 lb
0.1 kgF
1 N


Dimensions
Dimensions Digital Force Gauges RG


Specifications
Accuracy
+/- 0.5% of full scale +/- 1 digits
Safe overload
150% of capacity
Weight
0.55 lbs (0.25 kg)
Temperature
40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty
3 Years
