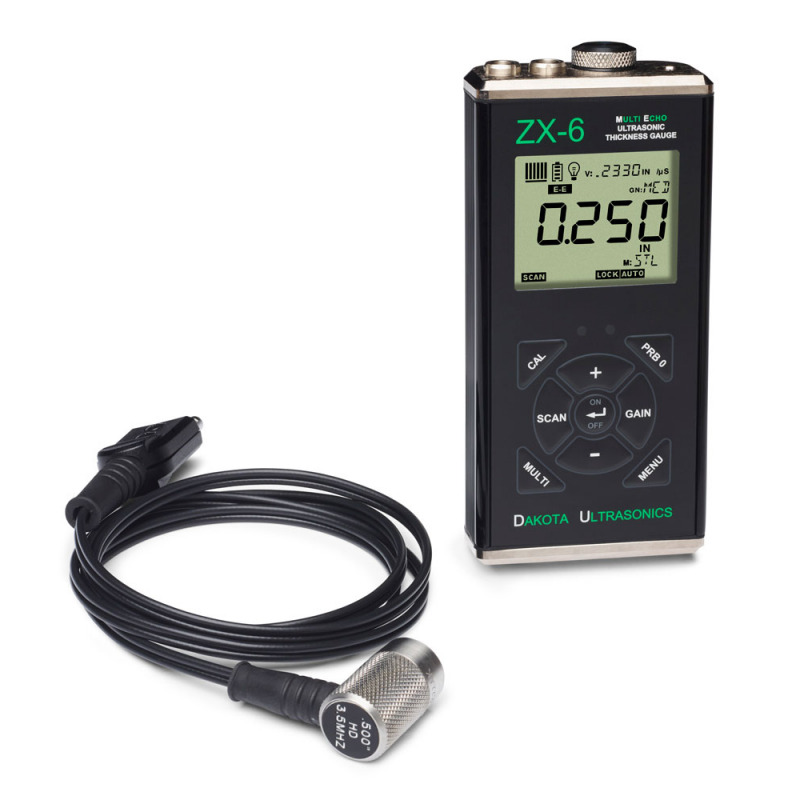

ZX-6 Thru-Paint Ultrasonic Wall Thickness Gauge


Made in the USAThe new Dakota ZX-6 wall thickness gauge measure the wall thickness and corrosion rate of all metals, ceramics, glass and most hard plastics from one side with the highest precision. The coating thickness is removed from the measurement and will display only the thickness of the metal wall.

The ZX-6 features next automatic or manual probe zero that maximizes subsequent gain adjustment in 5 positions to locate the backward wall echo and to force door walls made of sound absorbing materials such as cast metal and thick materials. It also includes a differential mode, hi-low alarms with audible and visual indicators, and a scan mode that captures minimum thickness at 100 readings per second (100 Hz).

The ZX-6 can be used in a 'single thickness read mode' or in a 'scan mode' in which the probe is swept over a large measurement area. The minimum thickness value recorded during the 'scan' is displayed.

The gauge and probe are IP67 rated, impact resistant and environmentally friendly to ensure trouble free operation under harsh applications. Furthermore, the ZX-6 has a 5-year limited warranty and is CE certified.



Measuring ranges are indicated below:

Total Measuring Range

Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode

0.63 to 914.4 mm

Echo-Echo Mode (Through Paint & Coatings) - EE Mode

2.54 to 25.40 mm

(Acutal range depends upon probe selected) - five probes to choose from

Measuring Range on Steel (with standard T-102-2700 probe)

Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode

1.00 to 199.9mm

Echo-Echo Mode (Through Paint & Coatings) - EE Mode

2.54 to 25.40 mm



Features
  • Measurement range(depending on material and probe): Pulse-Echo Mode (Pit & Flaw Detection) 0.63 to 914.4 mm/ Echo-Echo Mode (Through Paint & Coatings) /2.54 to 25.40 mm
  • Resolution of 0.01 mm
  • Measuring unit switchable between mm and inch
  • Selectable Backlight ON/OFF/AUTO
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • The probe is waterproof and can be submerged in water
  • Includes NIST Traceable Calibration Certificate
  • 5 Year Warranty

Additional functions:

Zeroing:
Automatic or manual zeroing of the probe.

Probe diameter:
Specify the probe diameter for increased linearity.

Differential mode:
Returns the ± difference from an entered nominal value.

Velocity Settings:

Adjustable on keypad

Alarm Mode:
Adjustable maximum and minimum limits. Exceeding the limit warns a visual and audible alarm.


Available Hi-Damped transducers
Type transducer:Diameter:Frequency:Measurement range P-E:Measurement range E-E:Maximum coating thickness with E-E:
T-101-37003/16"7.5 MHz1.16 to 50.8 mm (0.040 to 2.0 inch)2.54 to 25.4 mm (0.100 to 1.0 inch)
T-101-27003/16"5.0 MHz1.16 to 50.8 mm (0.040 to 2.0 inch)2.54 to 25.4 mm (0.100 to 1.0 inch)
T-102-2700*1/4"5.0 MHz1.16 to 152.4 mm (0.040 to 6.0 inch)2.54 to 25.4 mm (0.100 to 1.0 inch)Up to 1.016 (0.040 inch)
T-102-37001/4"7.5 MHz1.16 to 152.4 mm (0.040 to 6.0 inch)5.08 to 25.4 mm staal (0.200 to 1.0 inch)
2.54 tot 25.4 mm alum (0.100 tot 1.0 inch)

T-104-27001/2"5.0 MHzAdjustable-Large Range 1.27 mm up (0.05 inch)
T-104-97001/2"3.5 MHz2.54 to 101.6 mm (0.100 to 4.0 inch)3.175 to 101.6 mm (0.125 to 4.0 inch)Up to 1.90 mm (0.075 inch)
* Standard supplied

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 8.89 mm
Minimum Radius for Concave Surfaces 76.2 mm
Minimum Radius for Concave Surfaces Minimum Headroom 25.0 mm
Minimum Sample Diameter Minimum Sample Diameter 3.8 mm
Minimum Substrate Thickness - F Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Complete Kit

The ZX-6 is supplied as a complete kit with:

  • Thru-Paint Ultrasonic Wall Thickness Gauge
  • T-102-2700 1/4" 5,0 MHz transducer
  • 120 ml bottle of coupling fluid
  • 2 AA batteries
  • NIST-Traceable Calibration Certificate
  • Operating Instruction Manual
  • All in a foam-fitted carrying case.


Accessories

A-302-6002 Protection for TI series gauges



    More details

    A-302-6002 Protection for TI series gauges 127313

    Category Ultrasonic Thickness Gauge Accessories


    More details

    Category  Ultrasonic Thickness Gauge Accessories 375

    Specifications
    Measuring Range on Steel (with standard T-102-2700 probe):Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode 1.00 to 199.9mm
    Echo-Echo Mode (Through Paint & Coatings) - EE Mode 2.54 to 25.40 mm (range depends upon probe selected) - five probes to choose from
    Resolution:0.01 mm
    Measuring Mode:Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity
    Velocity Range:305 to 18,542 meters/sec
    Probe (standard):1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
    Probes (optional):1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
    LCD Display:Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
    Display Update Rate:10 Hz (10 updates/sec)
    Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
    Temperature Limits:Ambient: -30 to 75° C
    Material: -20 to 100° C
    Cable:1.2m waterproof cable with non-polarized, quick-disconnect connectors
    Housing Rating:IP65
    Housing:Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Certification:NIST Traceable
    Dimensions:63.5 x 131.3 x 31.5 mm
    Battery Type:2x AA batteries (rechargeable batteries can be used)
    Battery Life:45h continuous use
    Weight:308 grams
    Guarantee: Gauge: 5 Years
    Probes: 90 Days
