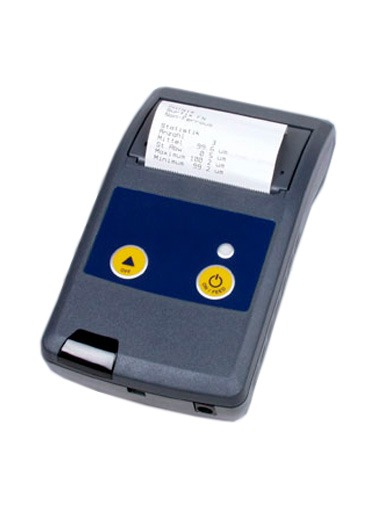

The portable thermal-printer 3000-IRP is equipped with an integrated infrared interface for wireless data transfer. It can print your stored values in the 3000-series coating thickness gauges fast and reliable locally or later in the office.
Archivable up to 5 years, if dryly stored without UV exposure
Integrated IrDA infrared interface
Speed of printing: 16 lines/sec
Fully charged battery is good for more than 5.000 print lines
Paper-role for printer 57 mm/2.3" wide, 11 m/role
Sleep-mode for saving of battery power
max. 24 alpha-numeric Characters/line
Data transfer to the portable printer
On demand of the thickness coating gauge (read manual) the data stored in the 3000-serie coating thickness gauges are printed immediately.
Please read the operating manual of the printer Printfix and define the required settings. The baud rate setting is important for the measurement data transfer/transfer of readings. Please pay attention to the following actions:
1. Charge the batteries before the first time use.
2. Switch on the printer.
3. The printer is now ready to receive data, and you can start the transfer of readings.
The 3000-IRP printer will be delivered as a complete kit including:
- Printfix printer
- Charger adapter (220V)
- 5 Paper rolls
Paper-role for printer:
57 mm/2.3" wide, 11 m/role
max. 24 alpha-numeric
0 - 50 °C / 32 - 122 °F
155 x 89 x 46 mm / 6.2" x 3.6" x 1.8"
app. 350 g / 12,5 ozs including paper-role
Printer is delivered including charger (220 V~/6 V DC, 500 mA)
